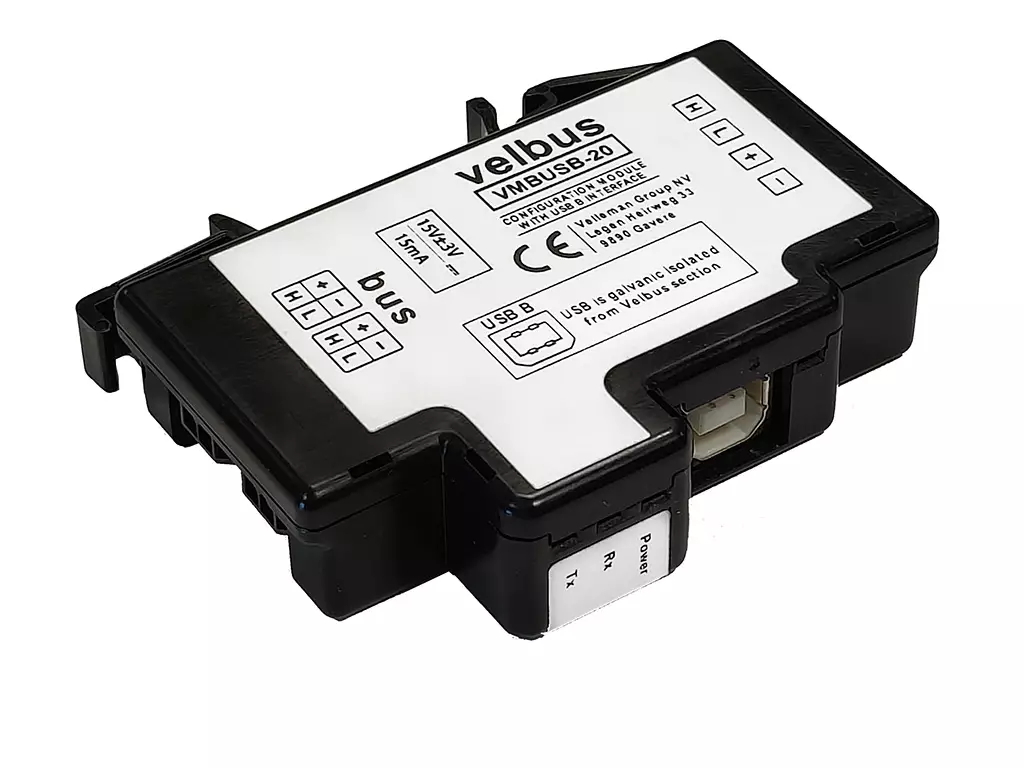

Velbus USB interface & configuration module

Unlock seamless connectivity with your Velbus installation via the VMBUSB module. With our complimentary Velbuslink software, you can effortlessly extract, store, modify, and re-upload your Velbus configuration. Your Velbus setup, your way. [b]Enhanced Safety[/b]: Our galvanically separated USB connection ensures secure configuration of your installation. Safety is our priority, empowering you to configure with confidence. [b]Flexible USB Cable[/b]: Your package includes a 2.5-meter angled USB B to USB A cable, offering the freedom to configure your installation from a comfortable distance while keeping the electrical cabinet securely closed. [b]Simplified Installation[/b]: Effortlessly mount the VMBUSB module on the DIN rail, disconnecting it once your configuration is complete. Its compact 1 DIN module size preserves your cabinet space - maximizing efficiency.

Ominaisuudet

Galvanic separation between the computer and the VELBUS system

Velbus:

Full VELBUS 16.6kbps protocol compliant

Velbus short circuit protection to power and bus

Self restoration after bus error

USB:

USB power indication

USB V2.0 compatible (full speed 12Mb/s)

Uses standard Microsoft™ Windows™ 'usbser.sys' driver

Tekniset tiedot

Electrical data

Current consumption: 15 mA

Electrical protection: Short-circuit

Technical data

Protocol: Velbus, USB

Operational properties

Instruction manual languages: Dutch, English, French

Number of ports: 3

Connections

Connector type 1: Velbus (2x Molex connection)

Connector type 2: Velbus (1x WAGO push-connections)

Connector type 3: USB

Power supply

Input voltage rating VDC range: 12-18 V

USB input current: 35 mA

Product basic info

Colour unit: Black

Width unit: 18 mm

Weight unit: 40 g

Height unit: 76 mm

Depth unit: 62 mm

Additional colour: White

Material: ABS
