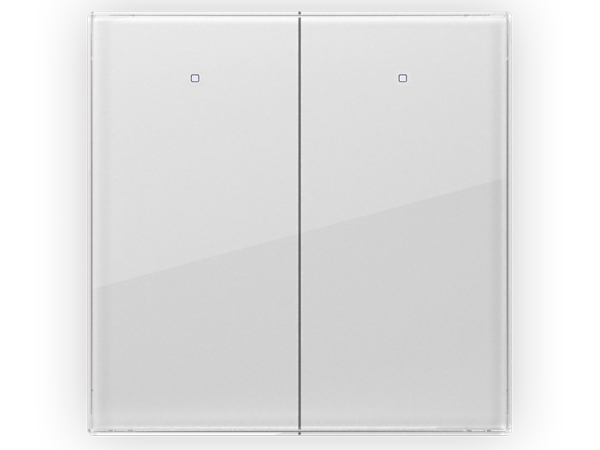

VELBUS KOSKETUSPANEELI 2-OS. VALKOINEN LASI

Ominaisuudet

• Configuration using Velbus PC interface (e.g.VMB1USB, VMBRSUSB) and
  free VELBUSLINK software.
• LED feedback and night orientation.
• Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
• Detects long or short press.
• Multichannel possibility, each short press
  activates next channel (max. 8).
• Extended day, week and year timers with possible sun (rise/set)
  synchronization* to simulate button press.
• On board temperature sensor to drive heating or air-conditioning.

Tekniset tiedot

• LED indication for supply and data ( at backside).
• mTouch© technology
• Safety glass
• power supply: 12...18VDC
• consumption: 18mA
• 250 possible addresses
• Uses 1 address per 8 buttons and per temperature sensor (configure using VELBUSLINK)
• dimensions:
  • 86 x 86 x 11mm / 3.38 x 3.38 x 0.43"
  • 4mm (0.15") glass + 7mm (0.27") distance to wall
  • depth: 28mm (1.10") including connector
• optional:
  • VMBGPFC: Frame for Velbus Glass Panel (claw version) - 5PCS
  • VMBGPFS: Frame for Velbus Glass Panel (screw version) - 5PCS
