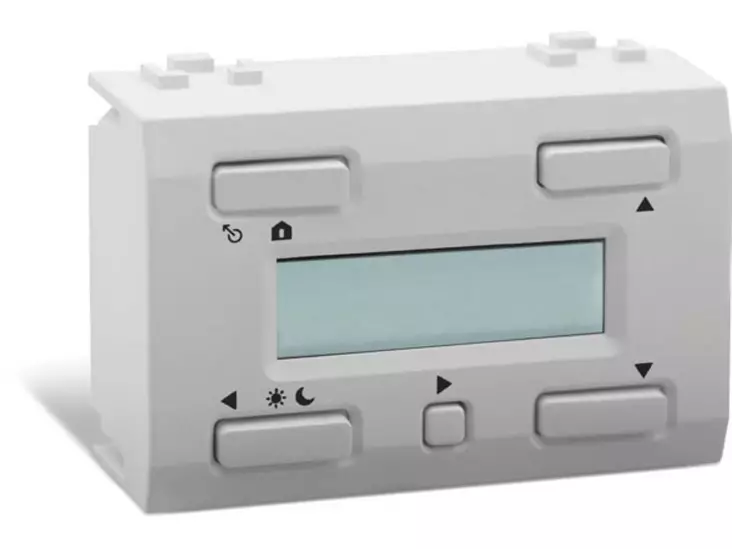

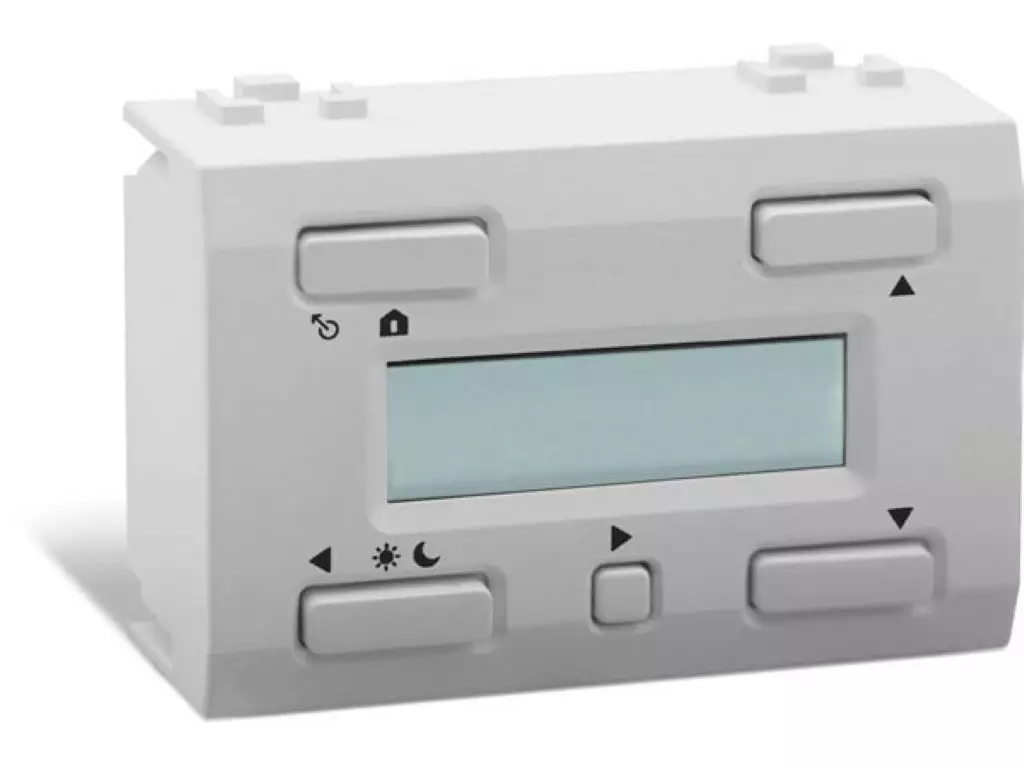

Temperature controller with LCD display and time backup for use with VMB1TS(W), white

Verify the temperature in each room and adjust when desired. Set up a weekly program for the living room, set the whole system to night mode for 21 days, set the bathroom temperature to 24° for 2 hours… are some of the options. It doesn't make a difference whether you use a centralized heating system or local heaters.

[b][I] Compatible with Bticino® frames : Living®, Light® & Light-Tech®[/b][/I]

Ominaisuudet

multi-language menu (EN/FR/DE/ES/NL)

label for each sensor (max 16 characters)

one button direct sensor access

up to 32 sensors per controller

zone creation (max 7)

night / Day or Comfort setting

programmable week/day timer, 31 steps per sensor

wake-up function with automatic heating option

sleep function (temporary program override)

cooling or heating option

multiple temperature alarms (anti freeze, anti overheat...)

celsius or Fahrenheit display

adjustable hysteresis

history: min./max. temperature and total activated time

low backup battery indication

pin code protection for configuration menu

2 lines 16CH LCD with white LED backlight

Tekniset tiedot

power supply: 15±3VDC

heating range: 0° to 54° (default from 16° to 36°)

cooling range: 0° to 54° (default from 5° to 30°)

local or PC configuration (VelbusLink + interface)

backlight timer option

power consumption: 50mA (backlight ON)

battery backup: 1x CR2032 (included)

communication: Velbus protocol

dimensions (WxHxD): 66 x 44 x 40 mm (w.o. cover plate)
