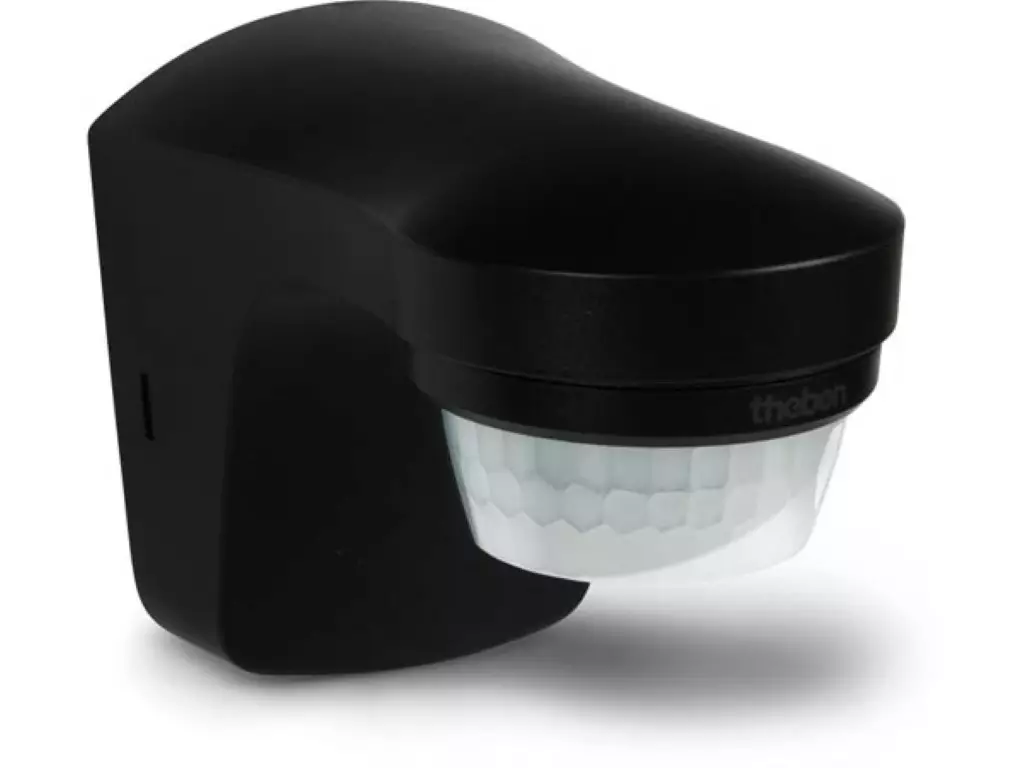

Outdoor Motion, Twilight and Temperature Sensor - Black version.

The VMBPIRO is much more than an outdoor motion detector. This adapted Theben sensor allows you to simultaneously use motion and light sensitivity as well as temperature measurement. The built-in astronomical clock allows the VMBPIRO to operate time-dependently. The module also simultaneously detects motion for a passage signal or light dependent movement for lighting control.

Ominaisuudet

motion detector for outdoor use

two motion output channels with programmable timeout

two light depending motion output channels with programmable light sensitivity and timeout

dark and light output channels with programmable light sensitivity and timeout

temperature sensor with low and high alarm output channels

configuration with Velbuslink software (free) and USB/RS-232 interface module

electronically addressable (up to 250 addresses)

firmware can be upgraded through the Velbus system

also available in white: [product name=VMBPIROW]VMBPIROW[/product]

Tekniset tiedot

Product basic info

Primary colours: Black

Depth unit: 125 mm

Height unit: 100 mm

Width unit: 85 mm

Weight unit: 194 g

Electrical data

Current consumption: 25 mA

Technical data

Mounting type: Wall mount

Sensor head angle down: 30 °

Sensor head angle left-right: 90 °

Set-up options

Detection angle: 150 °

Maximum detection range: 12 m

Light sensitivity: 1-100 lx

Adjustable angle: No

Adjustable pan-tilt: No

Environmental data

IP rating: IP55

Operating temperature range: -25-45 °C

Operational properties

Installation height: 2-4 m

Power supply

Input voltage rating VDC range: 3-15 V
