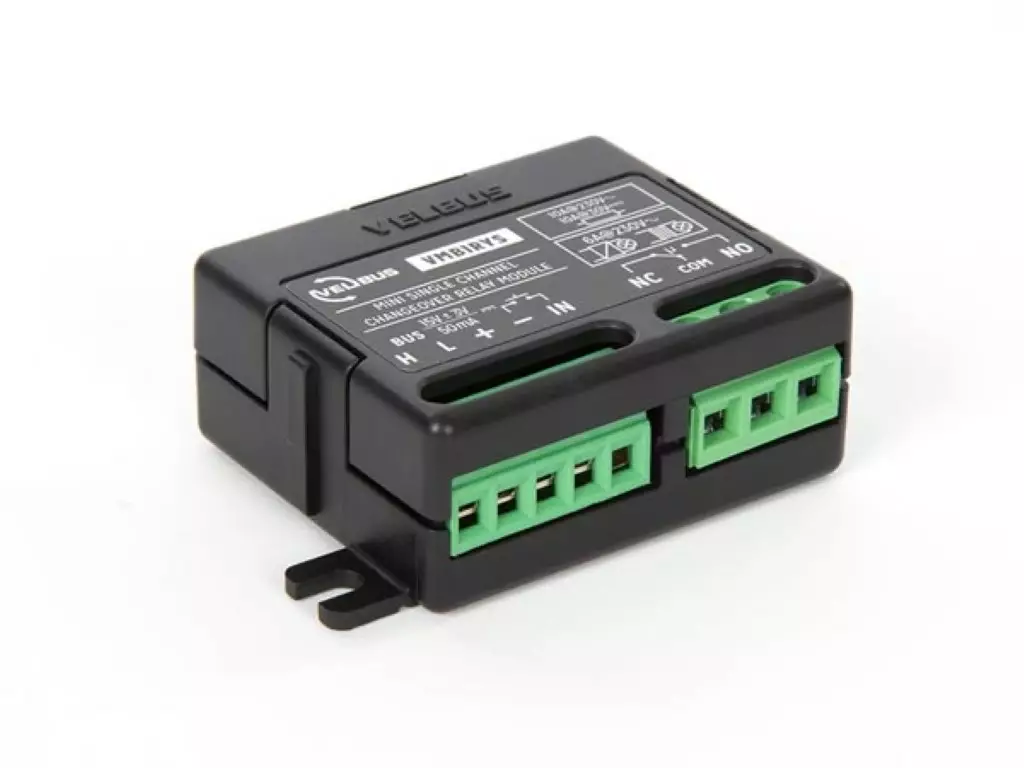

Mini single channel changeover relay module (for standalone and Velbus operation)
Mini 1-channel changeover relay module. Can be used in standalone mode (a push-button operates the relay directly), or in Velbus mode (input and relay are used as configurable Velbus channels)... Lue lisää
191,70 €(Sis.alv)
152,75 €(alv 0%)
- Tuotekoodi: VMB1RYS
- Takuu: 1 vuosi
- Paino: 68 g
- Toimittajan saatavuus: 20 kpl
kpl
Mini 1-channel changeover relay module. Can be used in standalone mode (a push-button operates the relay directly), or in Velbus mode (input and relay are used as configurable Velbus channels)
Ominaisuudet
80A high inrush current changeover relay with potential free contacts
for switching capacitive, inductive or resistive loads
standalone mode: in standalone mode a push-button connected to the input operates the relay
momentary or toggle mode can be selected by toggling the slide switch on the back
Velbus mode: in Velbus mode the module is connected to a Velbus domotics system
the relay and input are used as Velbus output and input channels
firmware upgradeable through the Velbus system
CAN terminator switch with state detection
bus error state indicated by led flashes
detection of power supply undervoltage indicated by led flashes (standalone and Velbus mode)
fire retardant ABS case with cuttable mounting brackets for screws and m3 bolts
leds for power supply, Rx (Receive), Tx (Transmit) and relay status
Tekniset tiedot
dimensions: 37 x 57 x 19 mm (L x W x D)
power supply: 15±3 VDC
current consumption: 50 mA (max)
weight: 34 g
Velbus and input connectors: 0.5 - 1.5 mm²
relay connectors: 1 - 1.5 mm²
relay max. current:
resistive: 10 A @ 230 VAC / 10A @ 30VDC
capacitive: 6 A @ 230 VAC
inductive: 6 A @ 230 VAC
relay max. power: 250 VAC
operating temperature: -10 - 50°C
IP-rating: IP10
protocol manuals for developers: available for download at [link url=https://github.com/velbus]https://github.com/velbus[/link]
