KOODINÄPPÄIMISTÖ TAUSTAVALOLLA

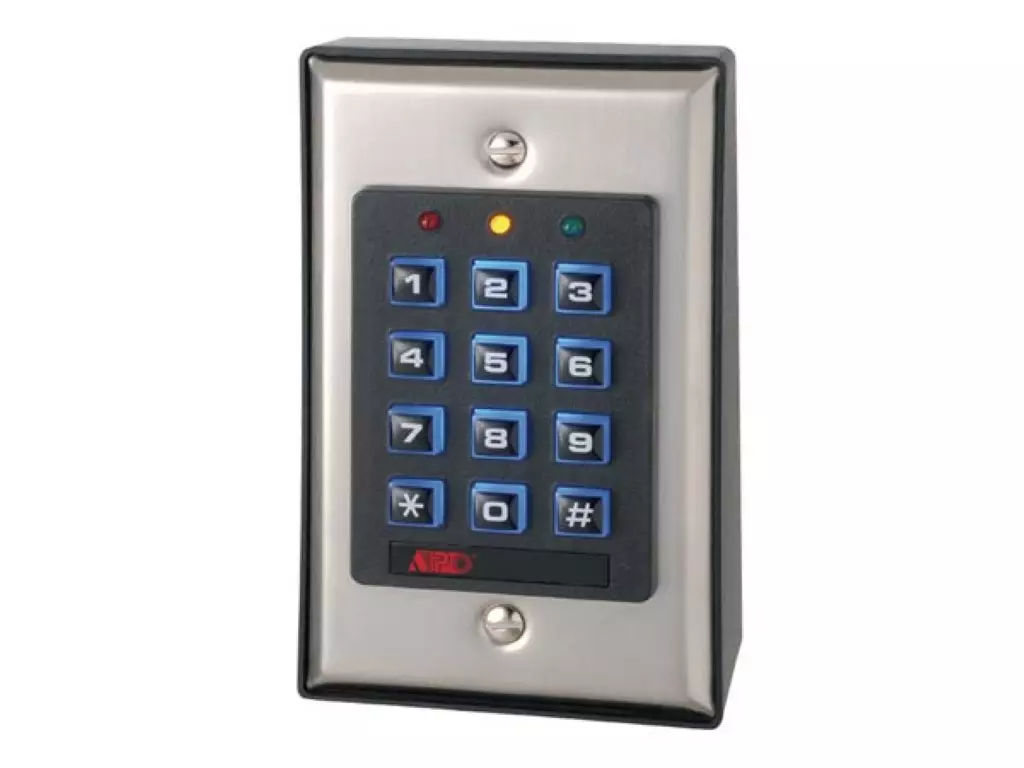

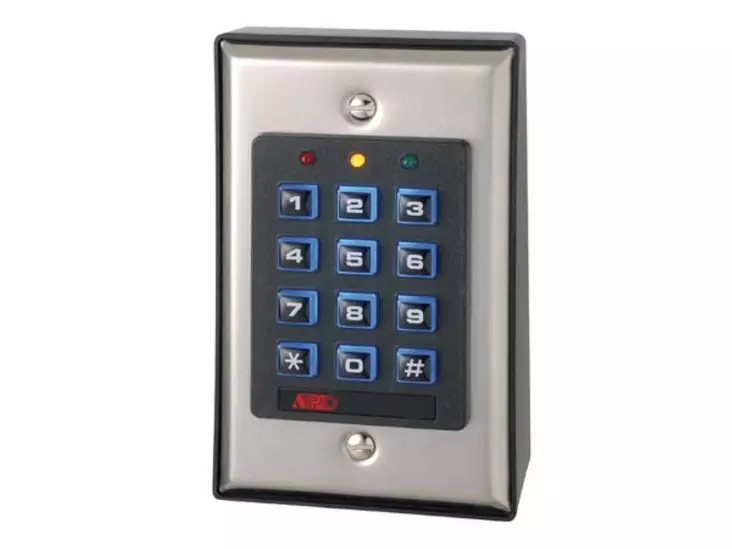

The HAA85BLN is a self-contained digital access keypad designed for residential and commercial installations. It is mainly for stand alone electric lock and inter-lock systems operating with 12 VDC power supply. It is virtually compatible with any electric locking device. Apart from that it is also a perfect choice for controlling security systems, automatic operators and machinery.

Ominaisuudet

• backlit keyboard: dim in stand-by, brightens for 10 seconds at the press of a key

Tekniset tiedot

• outputs:
  • output 1: solid state relay 3 A / 12 VDC
  • output 2: mechanical relay 1 A / 24 VDC max
  • output 3: NPN open collector 100 mA / 24 VDC
• 3 LED lamps showing external system status
• interlock facility
• output 1 locking control
• door propped-up warning
• auto or manual code entry
• relay activation announcement
• pacifier tone on/off options
• key activation output
• door auto relock
• alarm output
• duress output
• with onboard LED indication for showing keypad operation status
• operating voltage: 12 VDC
• duress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25VDC max
• available codes: user1 & 2, super user, master, duress and accelerated codes
• code combinations: 111.110.000
• dimensions: 117 x 72 x 42 mm
• weight: 180 g
• user manual: English
