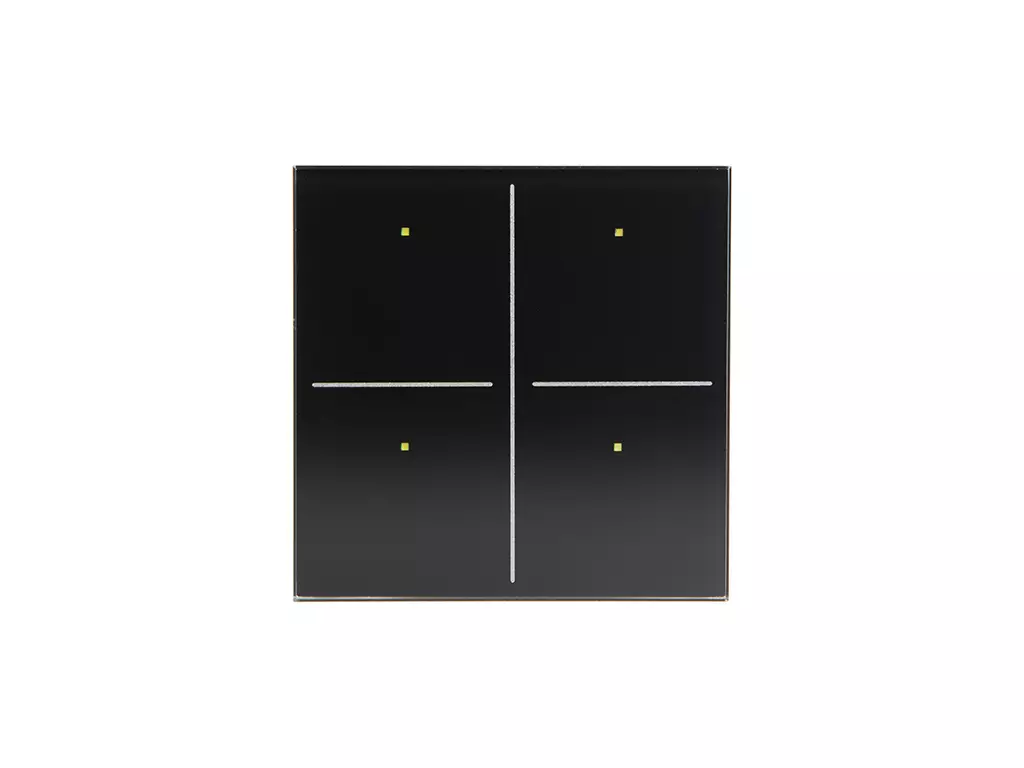

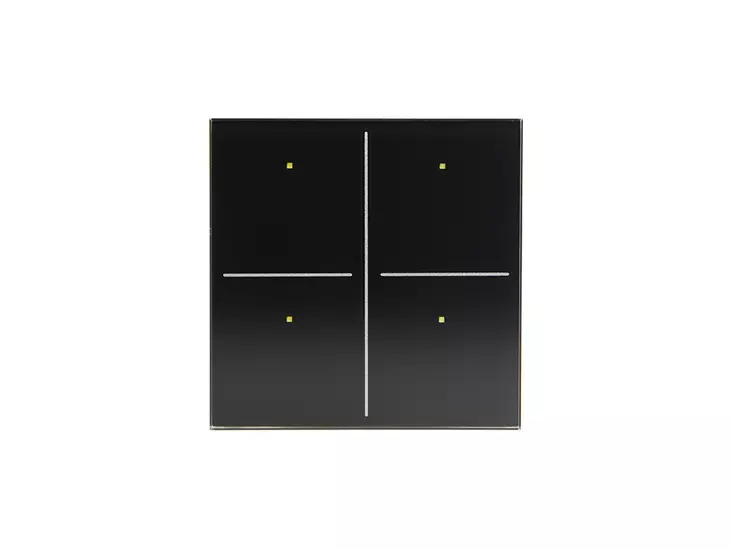

Glass Panel control module with 4 touch keys (Black Edition)

Upgrade your home automation system with the Velbus Glass Panel control modules, featuring cutting-edge glass panels and capacitive touch technology. Seamlessly integrate control over lighting, heating, smart devices, and scenes into your living spaces, combining style and functionality in one sleek device. [b]Intuitive Touch Control with LED Indicator(s)[/b]Experience the future of home automation with the Velbus Glass Panel's capacitive touch interface. Effortlessly control lighting, blinds, and connected devices with a simple touch. Audible click feedback during your touch provides an immediate confirmation, while programmable white LED indicators with customizable animations add a visual cue for specific device statuses, adding a personal touch to your smart home environment. [b]Customizable Control & Response Times[/b]Velbus Glass Panels intuitively detect long or short presses, allowing tailored interactions. Opt for quick adjustments with a short press or initiate comprehensive scene changes and light dimming with a long press. Fine-tune your experience with adjustable reaction times of 0, 1, 2, or 3 seconds for each button, adapting to your preferences for a seamless and responsive smart home experience. [b]Reliable and Durable[/b]Built with quality and durability in mind, the Velbus Glass Panels are designed to withstand the demands of daily use, offering a stable and long-lasting smart home solution. Our 10 year warranty is a testimony that we stand behind the durability and reliability of our product, ensuring your smart home investment is safeguarded for a decade, providing uninterrupted and worry-free smart home control. [b]Energy Efficiency & Smart Thermostat[/b]Optimize energy usage by incorporating the 'all lights off' action, enhancing efficiency when leaving your home. Each Velbus Glass Panel includes an onboard temperature sensor, enabling customized adjustments for heating and cooling in specific rooms. This smart thermostat feature ensures precise energy use, promoting a greener and more sustainable home. [b]Stylish and Elegant Design[/b]Elevate your living space with the modern and minimalist design of Velbus Glass Panels. The sleek glass panel seamlessly integrates into any decor, adding sophistication to your home. Choose from a stylish black version (VMBGPx-B-20) or a sleek white version (VMBGPx-W-20) for timeless design that seamlessly integrates into any interior.

Ominaisuudet

black edition (also available in white)

configurable by using the Velbus interface ([product name=VMBRSUSB]VMBRSUSB[/product]) and the free [product name=VELBUSLINK]VELBUSLINK[/product] program

adjustable button response time (0, 1, 2 or 3 seconds)

detection of short or long button press

configurable multi-channel operation on each push button, the next channel is selected at each press (up to 8 channels)

dual channel push button configurable, a different channel is selected depending on the length of the push (short or long push)

extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate push buttons automatically

integrated temperature sensor to control the heating and air conditioning

configurable LED feedback light for each button

LED-indication for supply voltage, data and terminator (backside)

uses one address per 8 buttons and one for the thermostat function (optional) (configurable by using VELBUSLINK)

not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances

WAGO KNX/EIB connector for a fast screwless and reliable connection (requires solid core EIB grade cables with 4x 0,8 mm diameter)

compatible with Bticino fixing LN4702 (included)

Tekniset tiedot

Physical properties

Display: No

Adjustable time-out: No

Motion sensor: No

Temperature sensor: Yes

Thickness glass: 4 mm

Twilight sensor: No

Adjustable light intensity: No

Distance glass panel to wall: 7 mm

Glass edition: Frosted

Installation depth: 28 mm

Electrical data

Current consumption: 18 mA

Standby current consumption: 10 mA

Technical data

Number of channels: 8

Number of buttons: 32

Colour of LEDs: White

Mounting type: Built-in, Clamp mounting, Screw mounting, Wall mount

Protocol: Velbus CANbus

Set-up options

Timer range: 1 day, 1 week, 1 year

Environmental data

IP rating: IP20

Operating temperature range: -10-40 °C

Usage location: Indoor only

Operational properties

Instruction manual languages: Dutch, English, French

Astronomical clock: Yes

Maximum program steps: 162

Possible address: 250

Reaction time: 0 s, 1 s, 2 s, 3 s

Number of push buttons: 4

Touch technology: SMSC Righttouch®

IT connections:

Connection type: WAGO KNX/EIB connector

Power supply

Input voltage rating VDC range: 12-18 V

Included

LED indicator: Yes

Mounting frame included: Yes

Product basic info

Colour unit: Black

Width unit: 86 mm

Weight unit: 125 g

Height unit: 86 mm

Depth unit: 11 mm

Additional material: Galvanized steel, PC (polycarbonate)

Material: Glass
