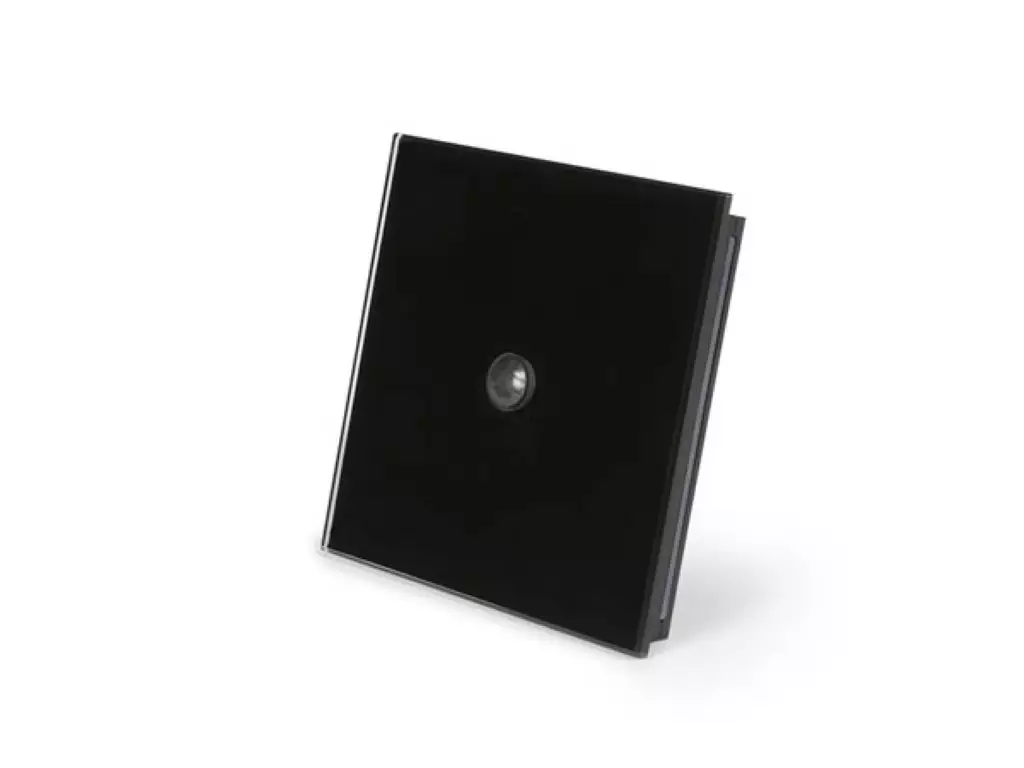

Edge Lit control module with motion and twilight sensor, black glossy
Ominaisuudet motion detector for indoor use 1 channel for motion detection with adjustable timeout 2 channels for light dependent motion detection with adjustable light sensitivity and timeout 1... Lue lisää
522,22 €(Sis.alv)
416,11 €(alv 0%)
- Tuotekoodi: VMBELPIR-BG
- Takuu: 1 vuosi
- Paino: 0.23 kg
- Toimittajan saatavuus: 20 kpl
kpl
Ominaisuudet
motion detector for indoor use
1 channel for motion detection with adjustable timeout
2 channels for light dependent motion detection with adjustable light sensitivity and timeout
1 channel for absence detection with adjustable timeout
2 channels for twilight detection (dark and light) with adjustable light sensitivity, reaction time and timeout
one pushbutton (touch technology)
adjustable button reaction time (0, 1, 2 or 3 seconds)
detection of short and long button press
configurable dual channel pushbutton: a different channel is selected depending on the length of the push (short or long push)
configurable multi-channel operation on pushbutton: the next channel is selected at each press (up to 2 channels)
extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate pushbuttons automatically
integrated temperature sensor to control the heating and air conditioning (only usable when side LEDs are turned off)
feedback/mood lights with RGBW side LEDs (adjustable light intensity and RGBW color)
the light intensity and color of the feedback and/or mood lights are independently adjustable per side
LED-indication for supply voltage and data (backside)
uses one address for the pushbutton, motion and twilight channels, and another address for the thermostat function (optional) (configurable in the VelbusLink configuration software)
configurable by using the Velbus PC interface (VMB1USB or VMBRSUSB) and the free VelbusLink configuration program
available in black and pure white, in both glossy and frosted finish
Tekniset tiedot
detection range: 94° horizontal x 82° vertical
detection distance (motion): max. 5 m
light sensitivity: 10...300 lux
touch-technology: SMSC RightTouch®
front material: safety glass
supply voltage: 15±3 VDC
possible addresses: 250
program steps: max. 66
dimensions:
LxWxD: 86 x 86 x 11 mm (4 mm glass + 7 mm to wall)
installation depth: 28 mm including the connector
temperature range: -10°C to +40°C
not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances
power consumption:
when side LEDs are off: 25 mA
when side LEDs are full brightness: 110 mA
mounting frame included (screw / clamp)
protocol manuals for developers: available for download at [link url=https://github.com/velbus]https://github.com/velbus[/link]
