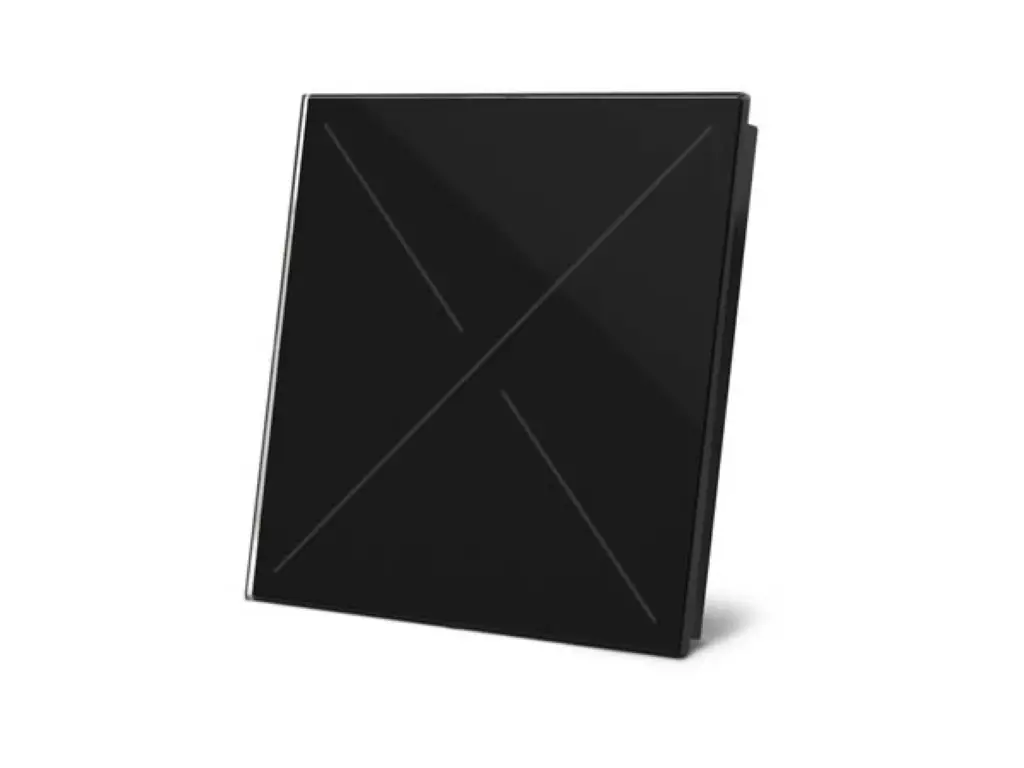

Edge-Lit control module with 4 touch keys - frosted black edition
Ominaisuudet black edition (also available in white) frosted glass edition (also available in glossy glass) configurable by using the Velbus PC interface ([product name=VMB1USB]VMB1USB[/product] or... Lue lisää
361,65 €(Sis.alv)
288,17 €(alv 0%)
- Tuotekoodi: VMBEL4-BF
- Takuu: 1 vuosi
- Paino: 0.23 kg
- Toimittajan saatavuus: 20 kpl
kpl
Ominaisuudet
black edition (also available in white)
frosted glass edition (also available in glossy glass)
configurable by using the Velbus PC interface ([product name=VMB1USB]VMB1USB[/product] or [product name=VMBRSUSB]VMBRSUSB[/product]) and the free [product name=VELBUSLINK]VELBUSLINK[/product] program
feedback/mood lights with RGBW side LEDs (adjustable light intensity and RGB colour or warm white by using [product name=VELBUSLINK]VELBUSLINK[/product])
feedback lights per push button that are located on the side of that push button (adjustable light intensity and RGB colour or warm white by using [product name=VELBUSLINK]VELBUSLINK[/product])
the light intensity and colour of the feedback and/or mood lights are independently adjustable per side
adjustable button response time (0, 1, 2 or 3 seconds)
detection of short or long button press
configurable multi-channel operation on each push button, the next channel is selected at each press (up to 8 channels)
configurable dual channel push button, a different channel is selected depending on the length of the push (short or long push)
extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate push buttons automatically
integrated temperature sensor to control the heating and air conditioning
LED-indication for supply voltage and data (backside)
uses one address for all push buttons and one for the thermostat function (optional) (configurable by using VELBUSLINK)
Tekniset tiedot
touch technology: SMSC RightTouch®
material: safety glass
supply voltage: 15±3 VDC
possible addresses: 250
programming steps: max. 66
dimensions:
86 x 86 x 11 mm
4 mm glass + 7 mm to wall
installation depth: 28 mm including the connector
temperature reach: -10°C to +60°C
not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances
power consumption:
when side LEDs are off: 25 mA
when side LEDs are on full brightness: 110 mA
