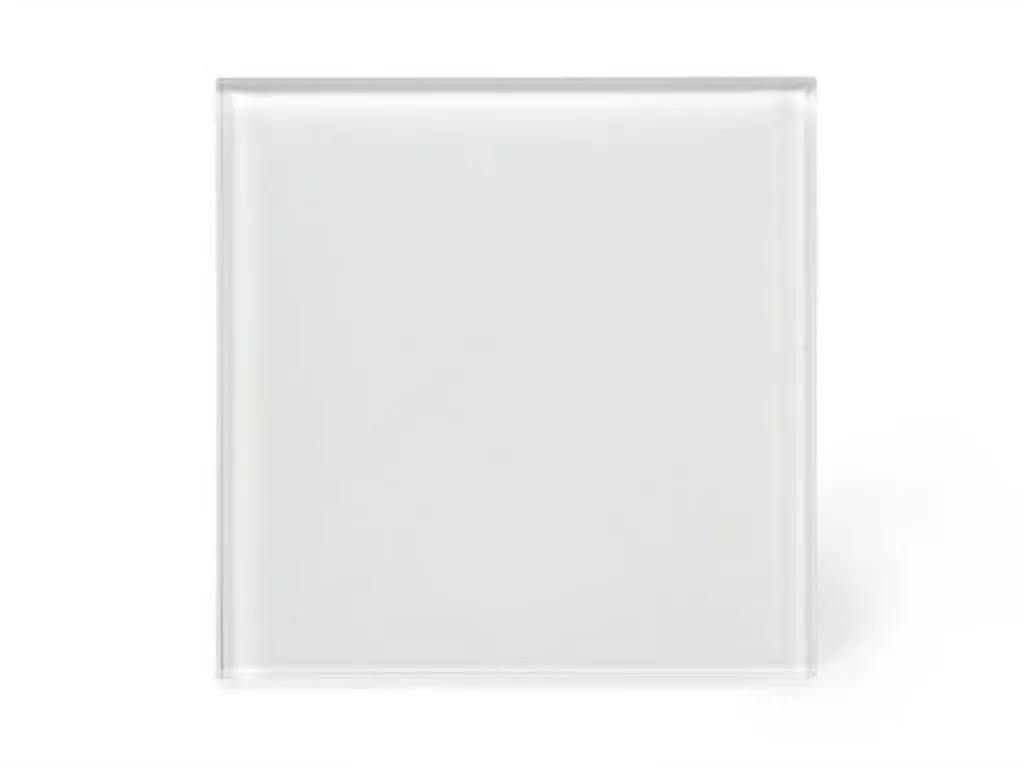

Edge Lit control module with 1 touch key (White Edition)

Upgrade your home automation with Velbus Edge Lit control modules?stylish glass panels with touch control and unique colour feedback. Seamlessly manage lighting, heating, and smart devices with intuitive touch, all in one sleek device. [b]Intuitive Touch & Customizable Control[/b]Effortlessly control lighting, blinds, and connected devices with a simple touch while enjoying immediate audible 'click' feedback. Tailored interactions guarantee a personalized smart home experience with detection of long or short presses, adjust reaction times, and multi-channel operation. Opt for quick adjustments with a short press or initiate comprehensive scene changes and light dimming with a long press. [b]Elevate Your Ambiance [/b]Experience the unique Edge Lit feature, which uses RGBW side LEDs to create an captivating halo effect around your control panel. Instantly visualize the status of your installation with personalized light intensity and color settings. Use it as mood light or as a soothing night light. Furthermore, you can unleash the full power of your Velbus installation by automating color changes based on events in your home: the front doorbell ringing, the garage door staying open, excessive energy consumption, and so on. Make your control panel more than just a button, the Velbus Edge Lit control module tells you what's going on in your home! [b]Reliable and Durable[/b]Built for daily use, Velbus Edge Lit control panels are reliable and durable. Backed by a 10-year warranty, they provide a stable and long-lasting smart home solution, ensuring worry-free control. [b]Energy Efficiency & Smart Thermostat[/b]Optimize energy with the 'all lights off' action, enhancing efficiency when leaving your home. Thanks to the onboard temperature sensor in each Velbus Edge Lit control panel, customized heating and cooling for specific rooms is your new smart standard, promoting a greener and more sustainable home. [b]Stylish and Elegant Design[/b]Elevate your living space with the modern design of Velbus Edge Lit control modules. Choose from stylish black versions (VMBELx-B-20) or a sleek white versions (VMBELx-W-20) for timeless design in any interior.

Ominaisuudet

white edition (also available in black)

configurable by using the Velbus interface ([product name=VMBRSUSB]VMBRSUSB[/product]) and the free [product name=VELBUSLINK]VELBUSLINK[/product] program

feedback/mood lights with RGBW side LEDs (adjustable light intensity and RGB colour or warm white by using [product name=VELBUSLINK]VELBUSLINK[/product])

the light intensity and colour of the feedback and/or mood lights are independently adjustable per side

adjustable button response time (0, 1, 2 or 3 seconds)

detection of short or long button press

configurable multi-channel operation on each push button, the next channel is selected at each press (up to 8 channels)

dual channel push button configurable, a different channel is selected depending on the length of the push (short or long push)

extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate push buttons automatically

integrated temperature sensor to control the heating and air conditioning (only usable when side LEDs are turned off)

LED-indication for supply voltage, data and terminator (backside)

uses one address per 8 buttons and one for the thermostat function (optional) (configurable by using VELBUSLINK)

not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances

WAGO KNX/EIB connector for a fast screwless and reliable connection (requires solid core EIB grade cables with 4x 0,8 mm diameter)

compatible with Bticino fixing LN4702 (included)

Tekniset tiedot

Physical properties

Display: No

Adjustable time-out: No

Motion sensor: No

Temperature sensor: Yes

Thickness glass: 4 mm

Twilight sensor: No

Adjustable light intensity: Yes

Distance glass panel to wall: 7 mm

Glass edition: Frosted

Installation depth: 28 mm

Electrical data

Current consumption: 110 mA

Standby current consumption: 25 mA

Technical data

Number of channels: 8

Number of buttons: 8

Colour of LEDs: RGBW

Mounting type: Built-in, Clamp mounting, Screw mounting, Wall mount

Protocol: Velbus CANbus

Set-up options

Timer range: 1 day, 1 week, 1 year

Environmental data

IP rating: IP20

Operating temperature range: -10-40 °C

Usage location: Indoor only

Operational properties

Instruction manual languages: Dutch, English, French

Astronomical clock: Yes

Maximum program steps: 66

Possible address: 250

Reaction time: 0 s, 1 s, 2 s, 3 s

Number of push buttons: 1

Touch technology: SMSC Righttouch®

IT connections:

Connection type: WAGO KNX/EIB connector

Power supply

Input voltage rating VDC range: 12-18 V

Included

LED indicator: Yes

Mounting frame included: Yes

Product basic info

Colour unit: White

Width unit: 86 mm

Weight unit: 125 g

Height unit: 86 mm

Depth unit: 11 mm

Additional material: Galvanized steel, PC (polycarbonate)

Material: Glass
