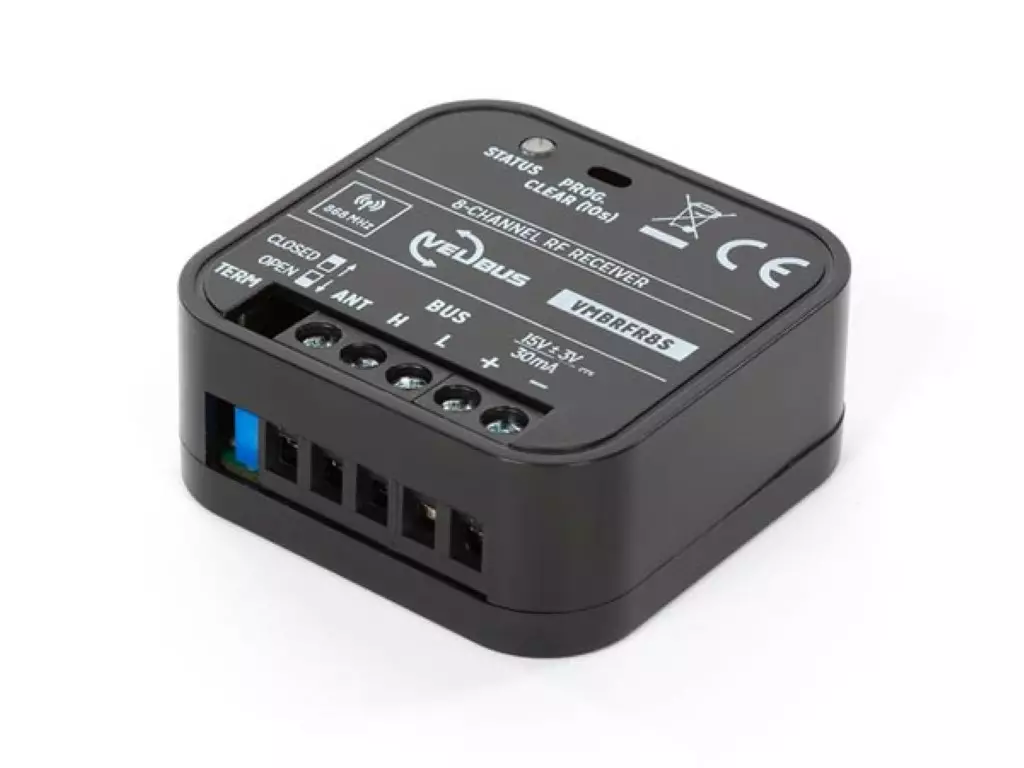

8-channel RF receiver
Ominaisuudet wireless remote control of entry gates, garage doors, lighting, blinds, etc. the receiver simulates 8 push button channels on the Velbus system wide range of operation (up to 250 m in... Lue lisää
276,05 €(Sis.alv)
219,96 €(alv 0%)
- Tuotekoodi: VMBRFR8S
- Takuu: 1 vuosi
- Paino: 54 g
- Toimittajan saatavuus: 20 kpl
kpl
Ominaisuudet
wireless remote control of entry gates, garage doors, lighting, blinds, etc.
the receiver simulates 8 push button channels on the Velbus system
wide range of operation (up to 250 m in open area)
works together with 2-channel handheld transmitter [product name=VMBRFT2H]VMBRFT2H[/product] and 4-channel handheld transmitters [product name=VMBRFT4H]VMBRFT4H[/product]
the 2-channel transmitter can control channels 1 & 2, or 3 & 4, or 5 & 6, or 7 & 8
the 4-channel transmitter can control channels 1 to 4, 3 to 6, or 5 to 8
assigning transmitters can be done manually or via the free [product name=VELBUSLINK]VELBUSLINK[/product]program
LED indication for receive status and learning mode
adjustable channel response time (0, 1, 2 or 3 seconds)
detection of short or long button press
configurable multi-channel operation, the next channel is selected at each press (up to 8 channels)
configurable dual channel push button, a different channel is selected depending on the length of the push (short or long push)
extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate the receiver channels automatically
uses one address (configurable in [product name=VELBUSLINK]VELBUSLINK[/product])
configurable by using the Velbus PC interface ([product name=VMB1USB]VMB1USB[/product] or [product name=VMBRSUSB]VMBRSUSB[/product]) and the free [product name=VELBUSLINK]VELBUSLINK[/product]program
Tekniset tiedot
frequency: 868 MHz
antenna: built-in (additional external antenna can optionally be connected)
coding system: unidirectional addressing transmission
max. number of transmitters: 48
number of channels: 8
possible addresses: 250
max. number of program steps: 74
operating temperature range: -10°C to +55°C
precautions:
electrically conductive materials (eg. metal) in the vicinity may interfere with the RF signal
using multiple transmitters on the same receiver at exactly the same time (within 100ms of each other) may cause a channel to remain pressed until the next button press, or until a timeout of 2 minutes has expired (whichever comes first)
supply voltage: 15±3 VDC
power consumption: 30 mA
dimensions: 47,5 x 47,5 x 20 mm
protection (IP): IP20
protocol manuals for developers: available for download at [link url=https://github.com/velbus]https://github.com/velbus[/link]
