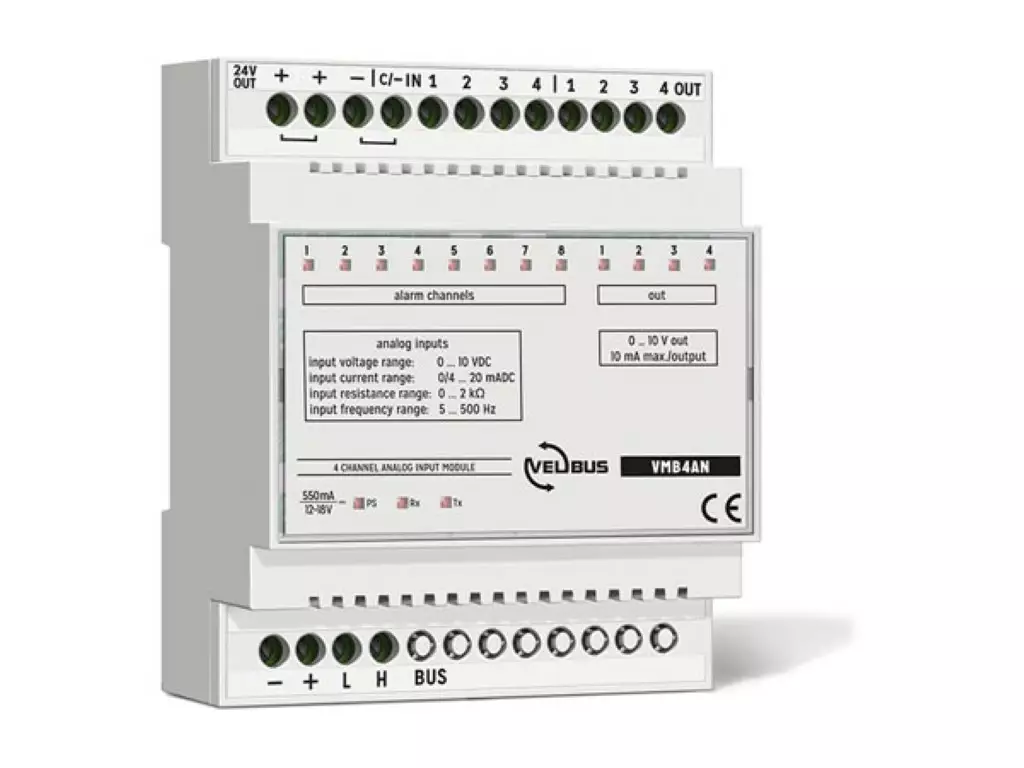

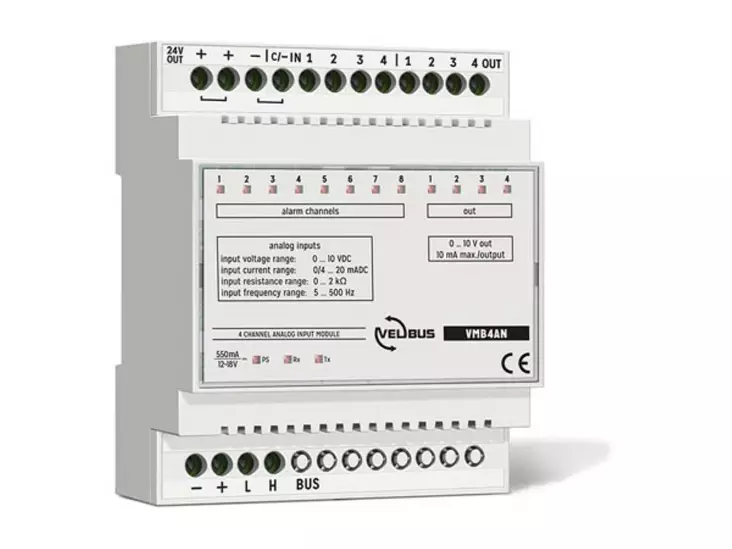

4-channel analog input module

4-channel analog input module - Taloautomaatio - VMB4AN - 1
4-channel analog input module - Taloautomaatio - VMB4AN - 1
Ominaisuudet 4 sensor inputs power supply output for the sensors 8 alarm channels configuration with [product name=VELBUSLINK]Velbuslink[/product] software (free) and a USB/RS-232 interface module... Lue lisää
866,49 €(Sis.alv)
690,43 €(alv 0%)
  • Tuotekoodi: VMB4AN
  • Takuu: 1 vuosi
  • Paino: 0.19 kg
  • Toimittajan saatavuus: 20 kpl
kpl
Ominaisuudet

  • 4 sensor inputs
  • power supply output for the sensors
  • 8 alarm channels
  • configuration with [product name=VELBUSLINK]Velbuslink[/product] software (free) and a USB/RS-232 interface module
  • electronically addressable (up to 250 addresses)
  • firmware can be upgraded through the Velbus® system
  • Information on the usage and configuration of this module is available in the configuration software [product name=VELBUSLINK]Velbuslink[/product].

    Tekniset tiedot

  • inputs: 4 analog inputs for sensors
  • each sensor input configurable as:
  • voltage input: 0 … 10 V
  • current loop input: 0 … 20 mA or 4 … 20 mA
  • resistance input: 0...2 kOhm
  • frequency input: 5 … 500 Hz
  • power supply output for sensors: 24 VDC / 150 mA
  • analog outputs (external server needed): 0 to 10 V / 10 mA per channel
  • power supply: 15±3VDC
  • power consumption: 550 mA max. (60 mA standby)
  • dimensions: 90 x 71 x 58 mm / 3.5 x 2.8 x 2.3"
  • width: 4 DIN modules
