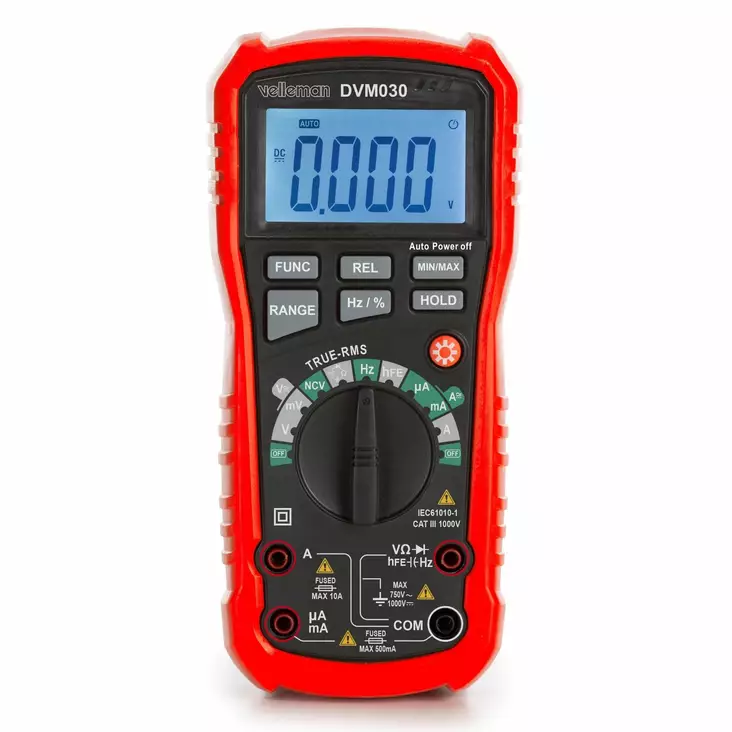

Auto-range rugged true RMS digital multimeter - CAT III - 1000 V - 8 functions

The DVM030 is the ultimate tool for electricians and installers. This rugged digital multimeter with automatic range is designed to meet the needs of professionals in the field, with a wide range of features that make it the choice of choice for all your measurement needs. With true RMS technology, this multimeter can accurately measure voltage and current, making it an indispensable tool for any electrical job. And with the ability to measure frequency and capacitance as well, you'll have all the information you need to complete your job quickly and efficiently. One of the outstanding features of this digital multimeter is the NCV (non-contact voltage detection), which allows you to easily and safely detect the presence of voltage without making direct contact with the electrical source. The high quality 100 cm long test leads are practical for all your testing needs. The backlit LCD display makes it easy to read your measurements. And with a safety rating of CAT III - 1000 V and a fused current measurement of 500mA and 10A at 1000 V, you can safely use this multimeter in fuse boxes and lighting circuits, where safety is paramount.

Ominaisuudet

[link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]

Inbuilt Non-contact voltage detection and live wire detction

Relativity (Zero) test

Transistor test

Back light LCD dipslay

MAX/MIN Hold

Rugged design

fused current measurement of 500mA and 10A at 1000 V

high-quality measuring leads with a length of 100 cm

Tekniset tiedot

Physical properties

Cable length: 1 m

Display height: 32 mm

Display width: 56 mm

Display type: LCD

Backlight: Yes

Maximum digits display: 4000

Electrical data

AC current:

basic accuracy: ±(1.5%+5)

AC voltage:

basic accuracy: ±(0.8%+5)

Audible continuity measurement: Yes

Automatic polarity indication: Yes

Capacity specifications:

basic accuracy: ±(4.0%+15)

DC current:

basic accuracy: ±(0.8%+5)

DC voltage:

basic accuracy: ±(0.5%+5)

Diode test: Yes

Frequency:

basic accuracy: ±(0.5%+2)

Fuse type multimeters: F 0.50 A / 1000 V, 6,35 x 32 mm, F 10 A / 1000 V, 6.35 x 32 mm

Out of range indication: Yes

Transistor test: Yes

True rms: Yes

AC current measurements: 0.1 µA - 10 A

AC voltage measurements: 0.01 mV - 750 V

Capacity measurements: 10 pF - 100 mF

DC current measurements: 0.1 µA - 10 A

DC voltage measurements: 0.01 mv - 1000 V

Frequency measurements: 10 Hz - 10 MHz

Resistance measurements: 0.1 ohm - 40 megohm

Resistance specifications:

basic accuracy: ±(0.8%+5)

Continuity test: Yes

Technical data

Safety rating: Cat III / 1000 V

Automatic power-off function: Yes

Data-hold function: Yes

Relative value measurement: Yes

Remote voltage test (NCV): Yes

Environmental data

Usage location: Indoor only

IP rating: IPx0

Operational properties

Range setting: Automatic

Power supply

Batteries included: Yes

Number of batteries: 1

Low battery indicator: Yes

Battery IEC size: 9 V

Included

with LED light: No

Set contents:

• silicone sleeve
• pouch
• TLM80: Test lead set - CAT III 1000 V / CAT IV 600V - length 100 cm

Product basic info

Colour unit: Red

Depth unit: 60 mm

Height unit: 200 mm

Width unit: 92 mm

Weight Unit: 230 g

Material: ABS
