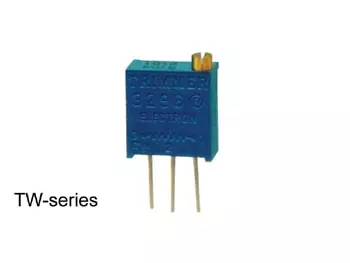

TRIMMERIPOTENTIOMETRI CERMET MONIKIERROS 1K (3296-W 102)

Professional multiturn trimming potentiometers.The cermet resistance element offers stability and high resolution. The trimmer is actuated by a screw with a slipping clutch at each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.

Ominaisuudet

MEC CITEC 4290W

vertical mounting

vertical adjustment

pin layout: line

range: 10E to 5M (E3 series)

Tekniset tiedot

power rating: 0.5W at 70°C

tolerance: ±10%

working voltage: 300Vdc max.

rotation:

electrical: 22 turns nom.

mechanical: 25 turns nom.
