VISATON KAIUTINRAKENNUSSARJA TABULA SET

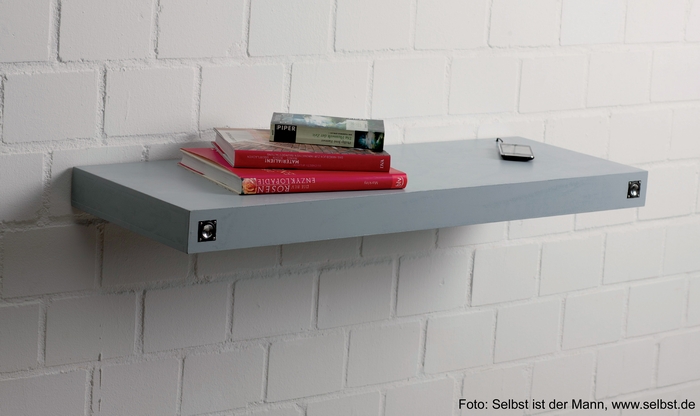

Tabula is a stereo loudspeaker cabinet designed to look like a shelf that is extremely versatile. It can be used as a bookshelf, TV stand, worktop or hifi rack and integrated invisibly into the room as a loudspeaker.

The main drivers are the miniature fullrange BF 32 8 Ohm speakers which, despite their modest size, sound remarkably grown-up and incorporate such technical details as aluminium diaphragms and neodymium magnets.

The bass department of the Tabula system is provided by the W 100 S 8 Ohm, an excellent value-for-money bass driver that has been popular for decades for that very reason. In the correspondingly designed bass reflex cabinet, this driver generates excellent low-frequency bass that is remarkably firm despite the size of the speaker.

The combination of these three components, coupled with a sophisticated crossover and the design of the system details produces a powerful stereo sound system which can be invisibly integrated into the room. Supplemented with a miniature amp (such as the VISATON AMP 2.2) and a simple MP3 player, the Tabula becomes a full-scale Hifi system.

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	4 Ohm
Frequency response	50–20000 Hz
Mean sound pressure level	80 dB (1 W/1 m)
Cut-off frequency	410 Hz
Principle of Housing	Bassreflex
Net volume	2 x 0,23 l + 10,5 l
Outer dimension height	67 mm
Outer dimension width	1000 mm
Outer dimension depth	350 mm
