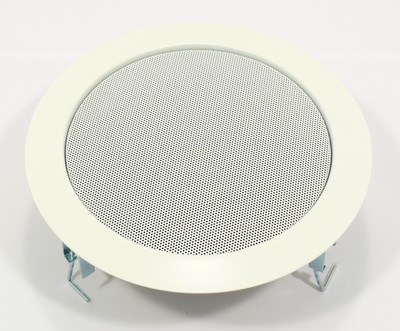

VISATON DL 18/1 AB 100 V

17 cm (6.5") ceiling speaker for PA installations with A/B wiring according to EN 60849. Fitted with a full-range speaker with dual voice coil, two 100 V transformers and two fire-proof ceramic terminals with thermal fuse (fire damage at the speaker does not affect the function of the entire system).

Corrosion free grille (RAL 9010), suitable for the installation in suspended ceilings of any material. Quick snap-in mounting due to round ceiling cut-out through which the speaker with transformer and mounting ring can be installed. Connection to the 100-V-network by means of screw terminals, level adjustment with plug-in contacts at the transformers. A quick-mounting bayonet connection provides an easy installation of the grille.

DL 18/1 AB can be supplied painted in other RAL colours on request.

Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany. The KompaX cabinet series is suitable for our ceiling speakers. Some additional front parts maybe necessary (front rings, mineral fibreboard etc.). More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers). In order to get more detailed information, press the "Technical information" button of the particular product. Fire protection housing systems (F30) are also available (FlamoX).

Typical applications:
- For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
- For PA installations with A/B wiring according to EN 60849

Attributes:
- Moisturised cone
- UV-resistant
- Metal basket, non-corrodible
- Ceramic terminals and thermal fuses

Technical Data:
Transformer matching	2 x 6 W; 2 x 3 W; 2 x 1,5 W
Frequency response	90–18000 Hz
Mean sound pressure level	96 dB (2 x 1 W/1 m)
Max. sound pressure level	104 dB (2 x 6 W/1 m)
Opening angle (-6 dB)	57°/4000 Hz
Resonance frequency fs	130 Hz
Voice coil diameter	20 mm
Cutout diameter	200 mm
Net weight	1,55 kg
Protective system	IP X3
Temperature range	−40 ... 110 °C
Colour	RAL 9010
