VISATON DL 10 8 OHM

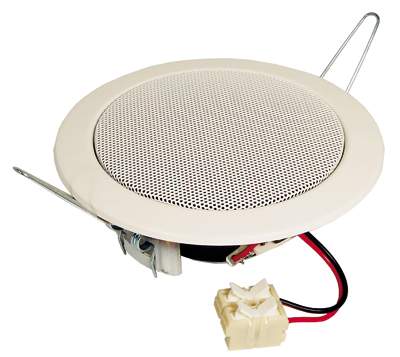

10 cm (4") ceiling-mounted speaker with white metal cover (RAL 9010). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms. A push-terminal block allows quick and easy connection. A compact solution for home and professional use with good sound qualities.

DL 10 can be supplied painted in other RAL colours on request.

Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany. The KompaX cabinet series is suitable for our ceiling speakers. Some additional front parts maybe necessary (front rings, mineral fibreboard etc.). More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers). In order to get more detailed information, press the "Technical information" button of the particular product. Fire protection housing systems (F30) are also available (FlamoX).

Typical applications:
- For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.

Attributes:
- Moisturised cone
- UV-resistant
- Metal basket, non-corrodible
- functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature)
- Ball-resistant

*) IP protection class for front side when built into a sealed enclosure

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	8 Ohm
Sound pressure level	90 dB (1 W/1 m) @ 2100 Hz
Frequency response	75–20000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	82°/4000 Hz
Excursion limit	+/−2,5 mm
Resonance frequency fs	140 Hz
Magnetic induction	0,7 T
Magnetic flux	130 µWb
Height of front pole-plate	4 mm
Voice coil diameter	20 mm
Height of winding	6 mm
Cutout diameter	110 mm
Net weight	0,4 kg
Length of cable	0,1 m
Protective system	IP 54 *)
Temperature range	−40 ... 110 °C
Colour	RAL 9010
