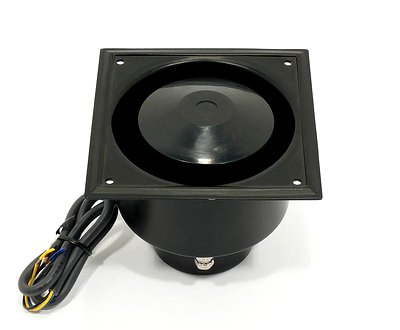

VISATON DK 121 100 V

Built-in horn speaker with 100 V transformer. Waterproof design. Housing made of black lacquered aluminium, horns made of polypropylene (PP). High IP protection class (IP 67), high sound pressure and good voice reproduction. Ideal for inconspicuous installation due to the very compact dimensions. The potential equalisation connection is by means of an M6 grubscrew on the rear of the housing. The connection is via a four-core, halogen-free flexible cable (0.5 m). Typical applications: - PA systems in factory halls, railway stations etc., - Outdoor PA at railway-vehicles, - Use in alarm/alert systems. Characteristics: Weather-proof aluminum cabinet, Plastic-insert-cabinet, UV-resistant.


Typical applications:
- PA systems in factory halls, railway stations etc.
- Outdoor PA at railway-vehicles
- Use in alarm/alert systems

Characteristics:
Weather-proof aluminum cabinet
Plastic-insert-cabinet
UV-resistant

Technical Data:
Transformer matching	6/3/1,5/0,5/0,3 W
Sound pressure level	104 dB (1 W/1 m) @ 2900 Hz
Frequency response	570–4400 Hz
Mean sound pressure level	100 dB (1 W/1 m)
Max. sound pressure level	107 dB (6 W/1 m)
Opening angle (-6 dB)	69°/4000 Hz
Voice coil diameter	40 mm
Net weight	0,78 kg
Length of cable	0,5 m
Protective system	IP 67
Temperature range	−25 ... 70 °C
