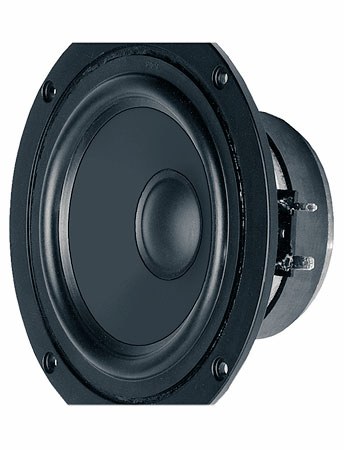

VISATON AL 130 M 8 OHM

13 cm (5") High End midrange driver with stiff, anodized aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low mechanical and electrical losses due to vented pole plate and vented damper. Capton voice-coil and impedance control ring. Due to the short voice-coil, the efficiency, compared to the AL 130 8 OHM, has been increased by 2-3 dB above 500 Hz. Suitable as midrange driver in 3-way High End applications for a frequency range up to 5000 Hz.

Technical Data:
Rated power	60 W
Maximum power	90 W
Nominal impedance Z	8 Ohm
Frequency response	fu–8000 Hz
(fu: Lower cut-off frequency depending on cabinet)	.
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	94°/4000 Hz
Excursion limit	+/−5,5 mm
Resonance frequency fs	57 Hz
Magnetic induction	0,95 T
Magnetic flux	450 µWb
Height of front pole-plate	6 mm
Voice coil diameter	25 mm
Height of winding	12 mm
Cutout diameter	115 mm
Net weight	1 kg
D.C. resistance Rdc	5,4 Ohm
Mechanical Q factor Qms	4,39
Electrical Q factor Qes	0,52
Total Q factor Qts	0,46
Equivalent volume Vas	9,1 l
Effective piston area Sd	79 cm²
Dynamically moved mass Mms	7,4 g
Force factor Bxl	5,6 Tm
Inductance of the voice coil L	0,8 mH
