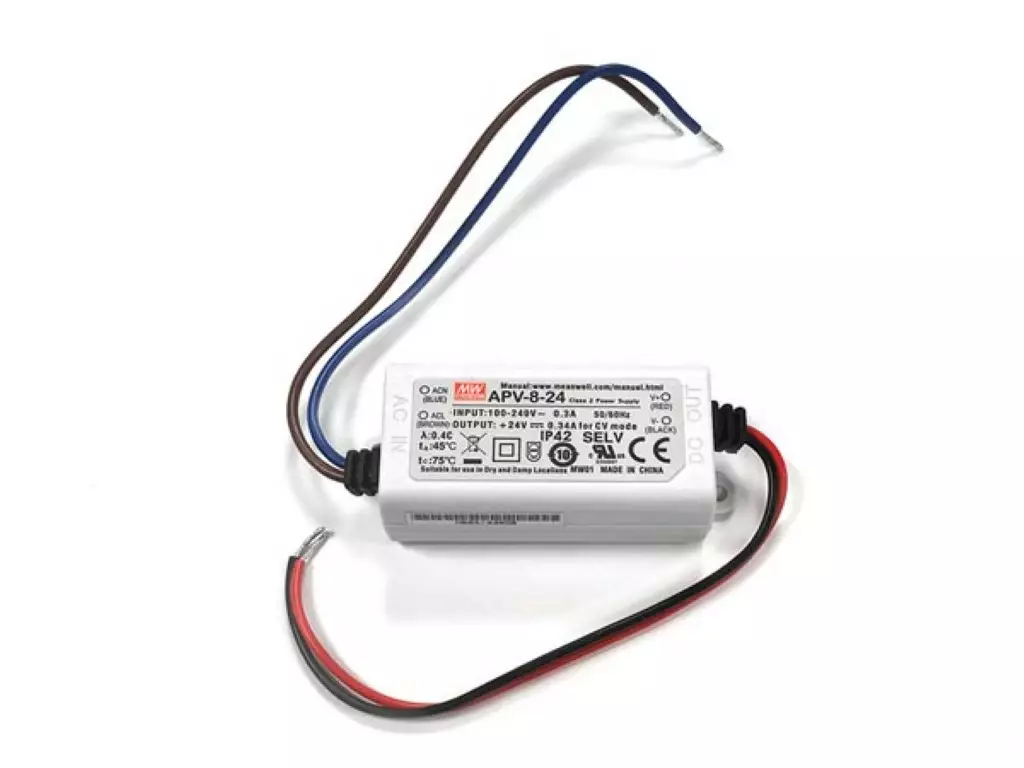

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 8 W - 24 V
Ominaisuudet constant voltage design universal AC input / full range class II power unit, no FG fully isolated plastic case IP 42 design small and compact size cooling by free convection protections:... Lue lisää
Tarjoustuote!
21,34 €(Sis.alv)
17,01 €(alv 0%)
tai 10 kpl hintaan 15,14 € / kpl(Sis.alv)
- Tuotekoodi: APV-8-24
- EAN: 4711287438320
- Takuu: 1 vuosi
- Paino: 49 g
- Toimittajan saatavuus: 53 kpl
Tilaa kerralla useampi ja säästä!
| Määrä | Hinta á |
|---|---|
1kpl | 21,34 €/ kpl |
5kpl | 15,98 €/ kpl-5,36 €/ kpl |
10kpl | 15,14 €/ kpl-6,20 €/ kpl |
kpl
Ominaisuudet
constant voltage design
universal AC input / full range
class II power unit, no FG
fully isolated plastic case
IP 42 design
small and compact size
cooling by free convection
protections: short circuit / overload / over voltage
no load power consumption: < 0.5 W
100 % full load burn-in test
low cost, high reliability
2 years warranty
for professional use only
This device must be installed by a qualified person.
Tekniset tiedot
output:
DC voltage: 24 V
rated current: 0.34 A
current range: 0 ~ 0.34 A
rated power: 8.16
ripple noise: 300 mV p-p
voltage tolerance: 5.0 %
line regulation: 1.0 %
load regulation: 2.0 %
setup, rise time: 500 ms, 30 ms / 230 VAC 1500ms, 30 ms / 115 VAC at full load
hold up time: 20 ms / 230 VAC at full load
input:
voltage range: 90 ~ 264 VAC 127 ~ 370 VDC
frequency range: 47 ~ 63 Hz
efficiency: 81 %
AC current: 0.15 A / 230 VAC 0.3 A / 115 VAC
inrush current: cold start 70 A at 230 VAC
leakage current: 0.25 mA / 240 VAC
protection:
short circuit: hiccup mode, recovers automatically after condition is removed
over load: above 105 % rated output power
over voltage: 27.6 ~ 32.4 V shut off o/p voltage, clamping by zener diode
environment:
working temperatue: -30 ~ +70 °C
working humidity: 20 ~ 90 % RH non-condensing
storage temperature, humidity: -40 ~ 80 °C, 10 ~ 95 % RH
temperature coefficient: 0.03 %
vibration: 10 ~ 500 Hz, 2 G 10 min / 1 cycle, period for 60 min each along X, Y, Z axes
saftey & EMC:
safety standards: UL8750, CSA C 22.2 No 250.0 - 08 approved; design refer to EN60950-1, EN61347-1, En61347-2-13
withstand voltage: I/P - O/P : 3.75 K VAC
isolation resistance: I/P - O/P :> 100 Ohms / 500 VDC / 25 °C / 70% RH
EMC emission: compliance to EN55022, EN61000-3-2 class A, EN61000-3-3
EMC immunity: compliance to EN55024, EN61000-4-2,3,4,5,6,8,11 ; ligth industry level (surge 2KV), critearia A
others:
MTBF: 1631.5 K hrs min MIL-HDBK-217F (25 °C)
dimension: 60 x 30 x 23.5 mm
packing: 0.09 k
