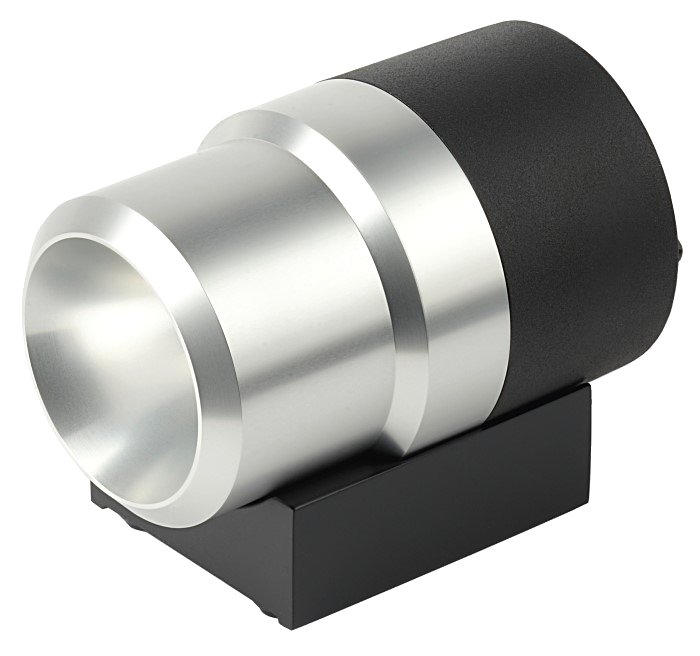

SUPERDISKANTTI VISATON TL 16 H 8 OHM

High-End horn driver for the high-frequency range above 5000 Hz. The extremely light aluminium titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response. The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.

Technical Data:
Nominal power handling with high pass	150 W (12 dB/Okt.; 7500 Hz)
Peak power handling with high pass	200 W (12 dB/Okt.; 7500 Hz)
Nominal impedance Z	8 Ohm
Frequency response	2200–35000 Hz
Mean sound pressure level	100 dB (1 W/1 m)
Opening angle (-6 dB)	67°/8000 Hz
Resonance frequency fs	6000 Hz
Magnetic induction	1,6 T
Magnetic flux	200 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	16 mm
Net weight	1,3 kg
D.C. resistance Rdc	6,9 Ohm
Inductance of the voice coil L	0,17 mH
