SERVO - MG995

The Whadda MG995 servo motor is a high-speed, metal gear servo motor. It can be used with most standard RC receivers, or with your own hardware that can output the required PWM signals, such as an Arduino® compatible board. The servo comes with all of the required mounting hardware and a selection of arms suitable for a variety of applications.

Ominaisuudet

fully metal gear system

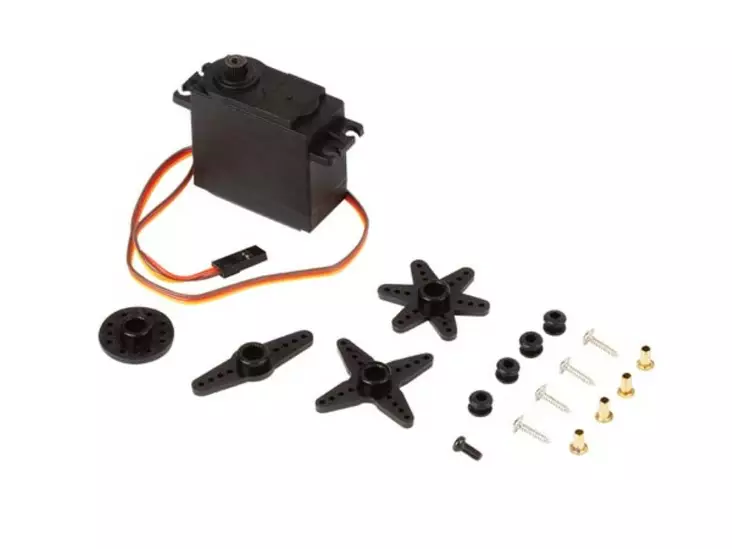

includes a variety of mounting hardware and a selection of servo arms

Tekniset tiedot

supply voltage: 4,8 - 7,2 V DC

stall torque: 83,4 N·cm (@ 4,8 V), 98,1 N·cm (@ 6 V)

operating speed: 0,2 s/60° (@ 4,8 V), 0,16 s/60° (@ 6 V)

rotation angle range: 0 - 120 °

dead band width: 5 µs

temperature range: 0 - 55 °C

weight: 55 g

dimensions (W x L x H): 20 x 54 x 47,2 mm
