LAAJAKAISTAELEMENTTI VISATON FRWS 5 SC 8 OHM

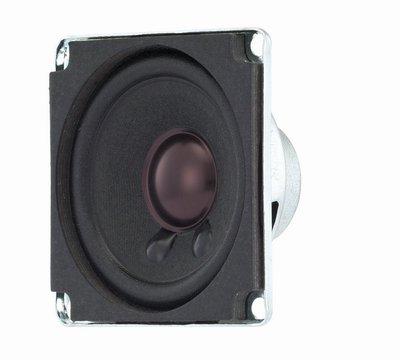

Magnetically shielded 5 cm (2") full-range driver with highly compact construction due to light-weight alnico magnet. Features balanced frequency response from 350 Hz and good omnidirectional sound distribution. Particularly suitable for music and voice reproduction in multimedia applications such as TV's, PC's etc.

ypical applications:
- Video monitoring screens
- TVs
- Control speaker for electronic devices
- Model construction

Attributes :
- Moisturised cone
- Metal basket
- Magnetically shielded

Technical Data:
Rated power	4 W
Maximum power	8 W
Nominal impedance Z	8 Ohm
Frequency response	200–20000 Hz
Mean sound pressure level	80 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	350 Hz
Voice coil diameter	14 mm
Height of winding	3,5 mm
Cutout diameter	45 mm
Net weight	0,052 kg
D.C. resistance Rdc	7,2 Ohm
Mechanical Q factor Qms	4,1
Electrical Q factor Qes	9,35
Total Q factor Qts	2,85
Equivalent volume Vas	0,2 l
Effective piston area Sd	12 cm²
Dynamically moved mass Mms	0,5 g
Force factor Bxl	1 Tm
Inductance of the voice coil L	0,1 mH
Temperature range	−25 ... 70 °C
