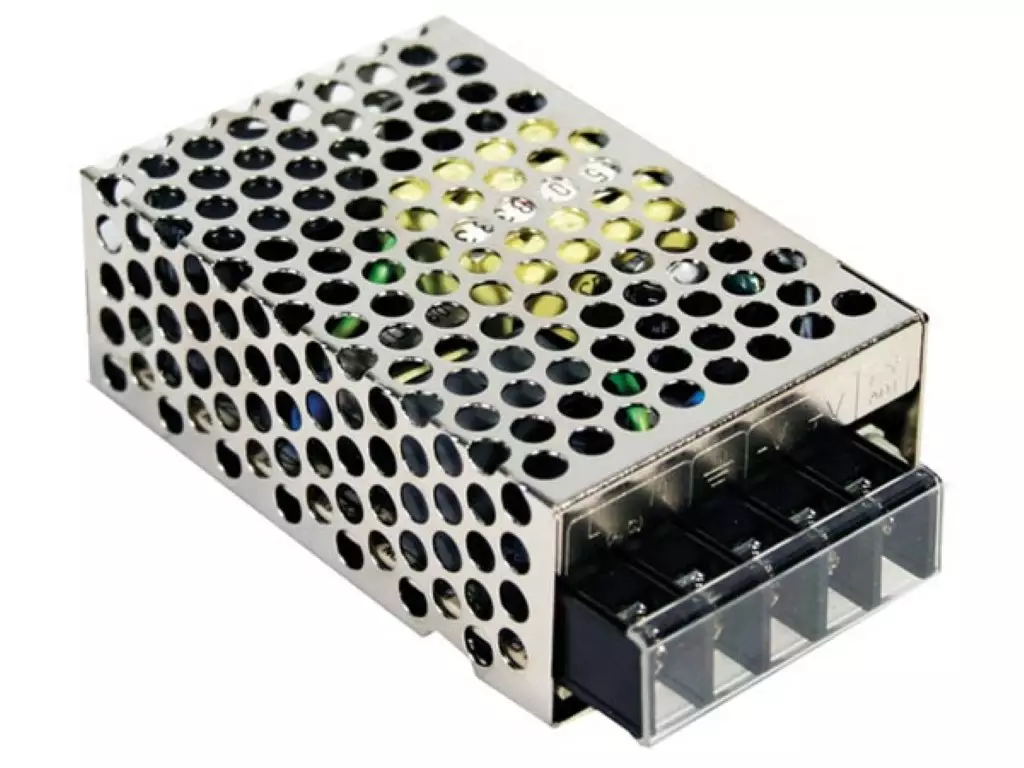

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 25 W - 12 V - CLOSED FRAME

Ominaisuudet

• universal AC input / full range
• cooling: by free air convection
• LED indicator for power on
• 100 % full load burn-in test
• using 105 °C long-life electrolytic capacitors
• withstands 300 VAC surge input for 5 seconds
• high operating temperature up to 70 °C
• withstands 5G vibration test
• no load power consumption < 0.5 W
• high efficiency, long life and high reliability
• 3 years warranty
• protection against: short circuit / overload / overvoltage

Tekniset tiedot

• output:
  • DC voltage: 12 V
  • rated current: 2.1 A
  • current range: 0 - 2.1 A
  • rated power: 25.2 W
  • ripple & noise (max.): 120 mVp-p
  • voltage adj. range: 10.8 - 13.2 V
  • voltage tolerance: +/- 1.0 %
  • line regulation: +/- 0.5 %
  • load regulation: +/- 0.5 %
  • setup, rise time:
    • 1800 ms, 23 ms / 230 VAC
    • 4000 ms, 30 ms / 115 VAC at full load
  • hold up time (typ.):
    • 80 ms / 230 VAC
    • 14 ms / 115 VAC at full load
• input:
  • voltage range:
    • 88 - 264 VAC
    • 125 - 373 VDC
    • withstands 300 VAC surge for 5 s
  • frequency range: 47 - 63 Hz
  • efficiency (typ.): 81.5 %
  • AC current (typ.):
    • 0.7 A / 115 VAC
    • 0.4 A / 230 VAC
  • inrush current (typ.): cold start 30 A / 230 VAC
  • leakage current: < 2mA / 240 VAC
• protection:
  • overload:
    • 110 - 180 % rated output power
    • protection type: hiccup mode, recovers automatically after fault condition is removed
  • overvoltage:
    • 13.8 - 16.2 V
    • protection type: shuts off output voltage, clamping by zener diode
• environment:
  • operating temperature: -25 to +70 °C
  • operating humidity: 20 - 90 % RH non-condensing
  • storage: -40 to +85 °C, 10 - 95 % RH
  • temperature coefficient: +/- 0.03 %/°C (0 - 50 °C)
  • vibration: 10 - 500 Hz, 5G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
• safety & EMC:
  • safety standards: UL60950-1, TÜV EN60950-1 approved
  • withstand voltage:
    • input to output: 3 kVAC
    • input to ground: 1.5 kVAC
    • output to ground: 0.5 kVAC
  • isolation resistance: input to output, input to ground, output to ground: 100 Mohm / 500 VDC / 25 °C / 70 % RH
  • EMC emission: compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3
  • EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A
• other:
  • MTBF: min. 309,700 h, MIL-HDBK-217F (25 °C)
  • dimensions (L x W x H): 78 x 51 x 28 mm
  • weight: 0.2 kg
