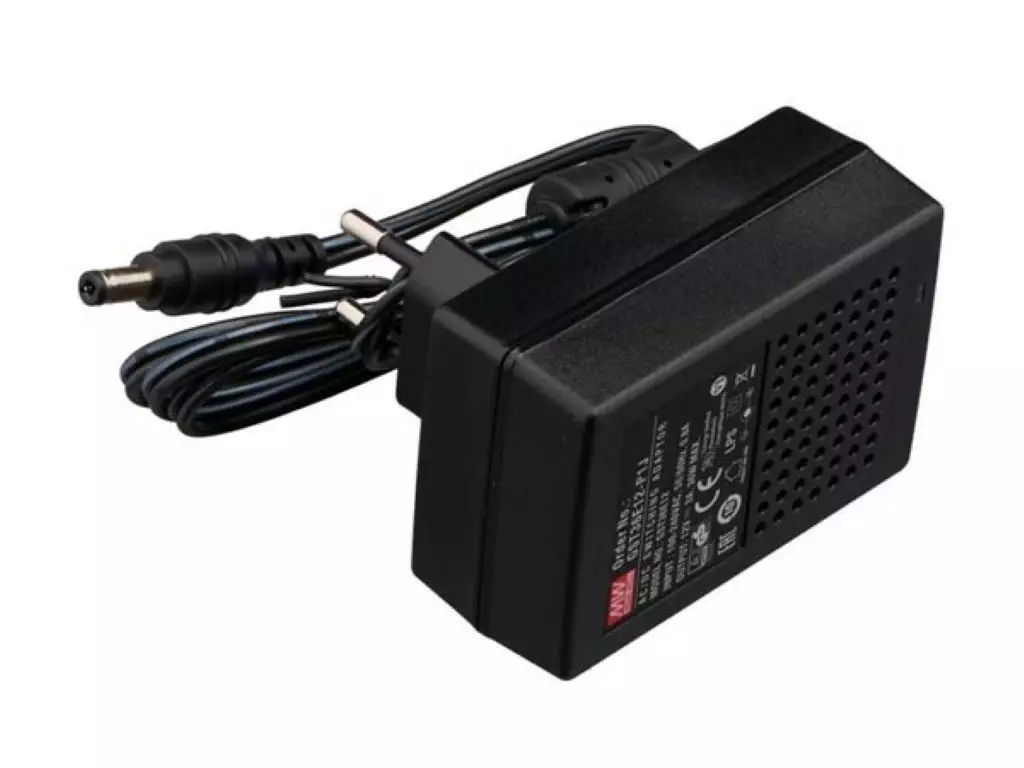

ITE COMPACT SWITCHING POWER SUPPLY - SINGLE OUTPUT - 12 VDC - 3A - 36 W
Ominaisuudet universal AC input / full range no load power consumption < 0.3 W ErP Step 2 compliant meets EISA 2007 (Energy Independence and Security Act) 2-pole Europlug Class II (without earth pin)... Lue lisää
Tarjoustuote!
38,87 €(Sis.alv)
30,97 €(alv 0%)
tai 10 kpl hintaan 27,59 € / kpl(Sis.alv)
- Tuotekoodi: MWGST36E12-P1J
- Takuu: 1 vuosi
- Paino: 0.22 kg
- Toimittajan saatavuus: 96 kpl
Tilaa kerralla useampi ja säästä!
| Määrä | Hinta á |
|---|---|
1kpl | 38,87 €/ kpl |
5kpl | 29,12 €/ kpl-9,75 €/ kpl |
10kpl | 27,59 €/ kpl-11,27 €/ kpl |
kpl
Ominaisuudet
universal AC input / full range
no load power consumption < 0.3 W
ErP Step 2 compliant
meets EISA 2007 (Energy Independence and Security Act)
2-pole Europlug
Class II (without earth pin)
protection against: short circuit / overload / overvoltage
fully enclosed in plastic case
approvals: TÜV / CB / CE
meets LPS requirements
2 years warranty
stabilised output, low ripple & noise
short-circuit & overload protection
very high efficiency & low energy consumption
Tekniset tiedot
output:
output voltage: 12 VDC
rated current: 3 A
max. output current: 0 - 3 A
power: 36 W
ripple & noise (max.): 100 mVp-p
voltage tolerance: +/- 3.0 %
line regulation: +/- 1 %
load regulation: +/- 3 %
setup, rise, hold up time:
1000 ms, 20 ms, 15 ms / 230 VAC
1000 ms, 20 ms, 15 ms / 115 VAC at full load
input:
voltage range:
90 - 264 VAC
135 - 370 VDC
frequency range: 47 - 63 Hz
efficiency (typ.): 87.5 %
AC current (typ.): 0.7 A / 100 VAC
inrush current (typ.): 70 A / 230 VAC
leakage current: 0.25 mA / 240 VAC
protection:
overload:
110 - 150 % rated output power
protection type: hiccup mode, recovers automatically after fault condition is removed
overvoltage:
110 - 140 % rated output voltage
protection type: clamping by zener diode
environment:
operating temperature: -30 to +70 °C
operating humidity: 20-90 % RH non-condensing
storage: -40 to +85 °C, 10 - 95 % RH
temperature coefficient: +/- 0.03 %/°C (0 - 50 °C)
vibration: 10 - 500 Hz, 2G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
safety & EMC:
safety standards: TÜV EN60950-1 approved
withstand voltage: input to output: 4242 VDC
isolation resistance: input to output: 100 Mohm / 500 VDC / 25 °C / 70 % RH
EMC emission: compliance to EN55032 Class B; EN61000-3-2,3 Class A
EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11
others:
MTBF: min. 692,300 h, MIL-HDBK-217F (25 °C)
dimensions (L x W x H): 79 x 54 x 33 mm
weight: 209 g
plug: ID 2.1 x OD 5.5 mm
cable length: 1 m
temperature: -30 °C to +50 °C
output voltage tolerance: ± 10 %
