HM-10 BLUETOOTH 4.0 SHIELD ARDUINO® UNOLLE

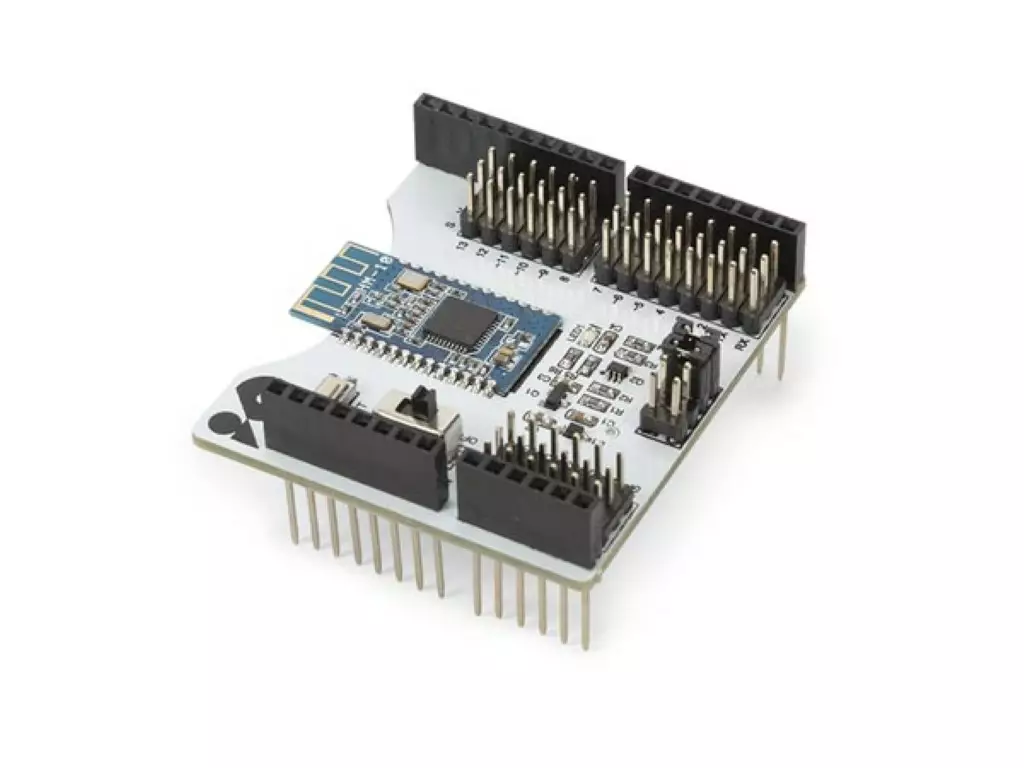

The shield uses a HM-10 module with Texas Instruments® CC2541 Bluetooth v4.0 BLE chip, fully compatible with the Arduino UNO. This shield has extended all the digital and analog pins out into 3PIN, making it easy to connect to sensors using 3PIN wire.

Ominaisuudet

extends 14 digital pins to 3pin

extends 6 analog pins to 3pin

on-board reset button

comes with a slide switch to power wireless communication on or off

jumper interface to control serial communication

integrated Texas Instruments® CC2541 Bluetooth v4.0 chip on board

Tekniset tiedot

pin header spacing: 2.54 mm

Bluetooth® chip: Texas Instruments® CC2541

USB protocol: USB V2.0

working frequency: 2.4 GHz ISM band

modulation method: GFSK (Gaussian Frequency Shift Keying)

transmission power: -23 dbm, -6 dbm, 0 dbm, 6 dbm, can be modified by AT command

sensitivity: =-84 dBm at 0.1% BER

transmission rate: asynchronous 6K bytes

security: authentication and encryption

supporting service: central & peripheral UUID FFE0, FFE1

power consumption: 400-800 uA during standby, 8.5 mA during transmission

power supply shield: 5 VDC

power supply HM10: 3.3 VDC

working temperature: -5 to +65 °C

dimensions: 54 x 48 x 23 mm

weight: 19 g
