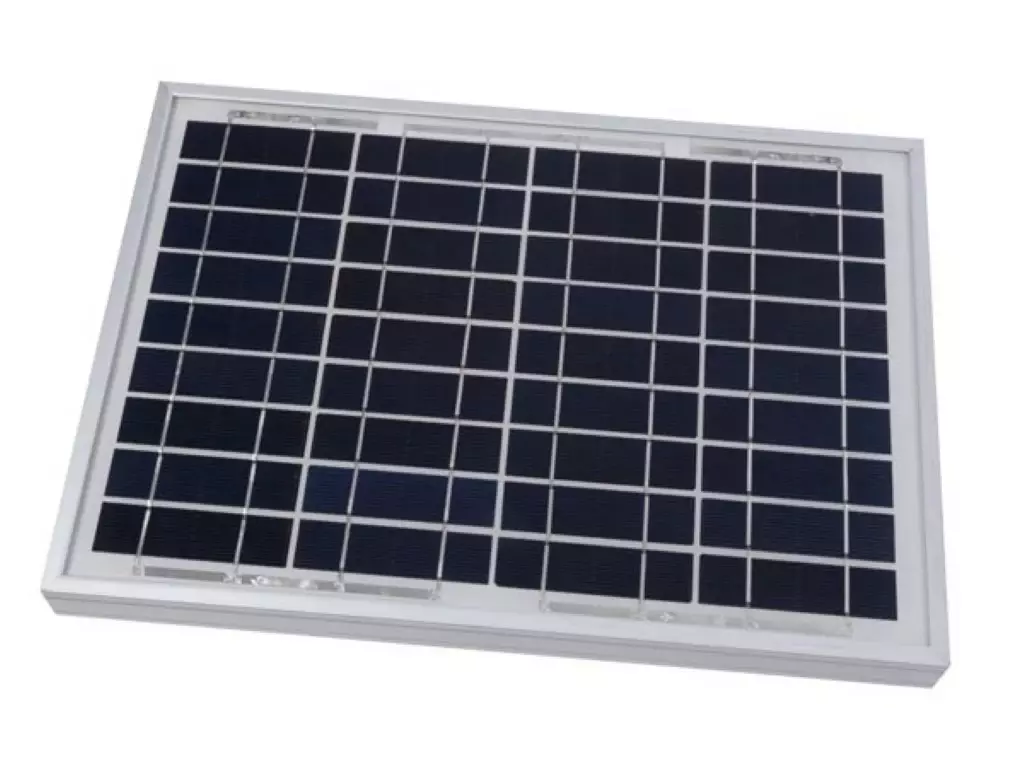

AURINKOPANEELI 12V 10W

Ominaisuudet

• high module efficiency and stable power output based on leading process technology
• outstanding electrical performance under high temperature conditions or low rradiance conditions.
• easy of installation and all-weather applications
• for: small solar installations (caravan, camper...)

Tekniset tiedot

• maximum power (Pmax): 10 W
• voltage at Pmax (Vmp): 17.6 V
• current at Pmax (Imp): 0.58 A
• open-circuit voltage (Voc): 21.8 V
• short-circuit current (Isc): 0.61 A
• temperature coefficient of Voc: -(0.40 ± 0.05) % / °C
• temperature coefficient of Isc: -(0.065 ± 0.01) % / °C
• temperature coefficient of power: -(0.5 ± 0.05) % / °C
• NOCT: 47 ± 2 °C
• lämpötila-alue: -40 °C to +85 °C
• maximum system voltage: 600 VDC
• power tolerance: ± 3 %
• cells: polycrystalline silicon solar cell
• number of cells and connections: 36 (4 X 9)
• module dimension: 356 mm x 253 mm x 30 mm
• weight: 1.39 kg (3.25 lbs)
