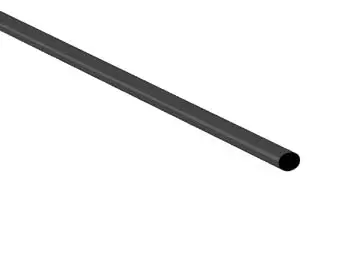

SHRINKABLE TUBE 2:1 - 2.4mm - BLACK - 1,2m - ( 50pcs)

Heat-shrinkable tubing is universally applied for the insulation of connections or for the end-handling of electric wire, for the insulation of soldered points on resistors and capacitors, for the identification and encapsulation of electric wire, for the corrosion-proofing of metallic rods or tubes and for the protection of antennas. Heat-shrinkable tubes are used for the corrosion-proof and waterproof connection of fibre optic cable.
Halogen-free, flexible, flame-retardant heat-shrinkable tubing. Free of Pb,Cd, Hg,Cr+6, PBB and PBDE. Can be used in any enclosed area where a flame-retardant, halogen-free environment is required, such as the uderground, skyscraper, mass transit vehicles and ships. UL recognized at 600V. F mark.

Tekniset tiedot

colour: black

length: 1.2m

bore as supplied min.: 2.4mm

shrink temperature: 90°C

temperature range : 125°C

radial shrinking ratio: >50%

longitudinal change: 10.4 MPa

ultimate elongation: >200 %

aging in circulating-air oven: 158.0±1.0°C, 168hrs

tensile strength: >7.3MPa

after aging:

ultimate elongation: >100%

volume resistivity: >1014 Ohm.cm

dielectric strength: >15 KV/mm

flammability: VW-1

concentricity: >65%
