MID certified Single- or Three-phase Bi-directional energy meter 5(80) A with two S0 pulse outputs

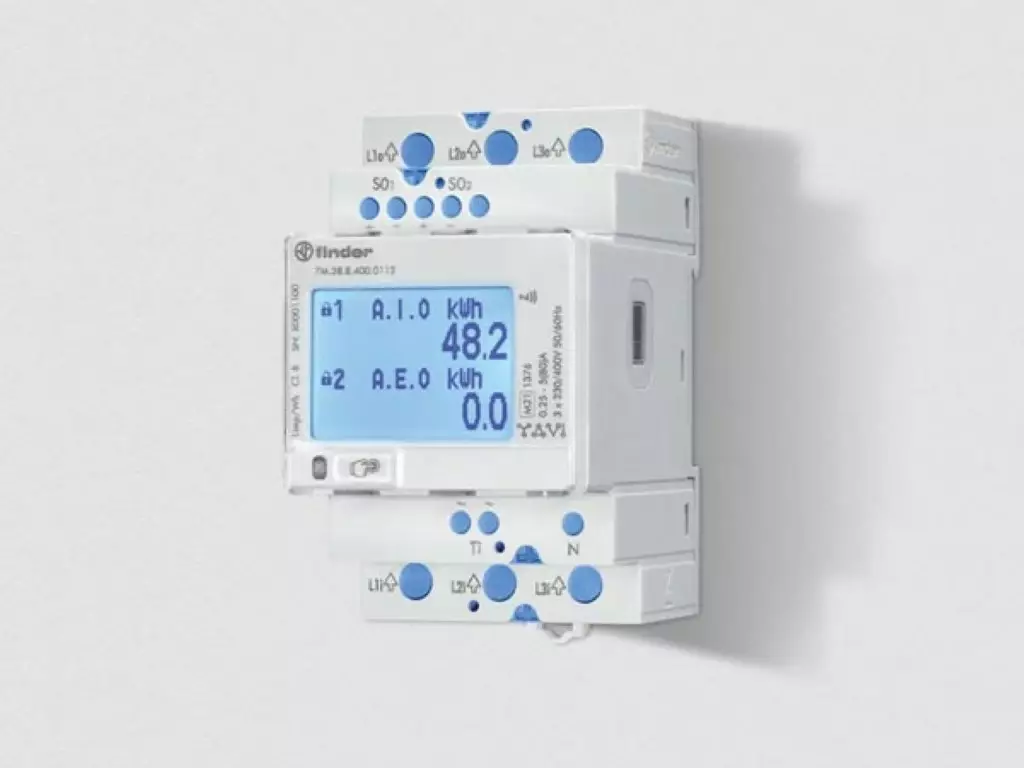

The Finder 7M.38.8.400.0112 is a MID certified (up to 80 A @ 70°C) Single- or Three-phase (3 or 4 wire systems) Bi-directional energy meter with backlit Matrix LCD display, multi-function button, two S0 pulse output ports and IR communication port. The NFC technology of the Finder 7M.38.8.400.0112 allows reading the measured energy locally, even in the absence of mains voltage and to program and customize the counters via your smartphone. The 7M.38.8.400.0112 is also distinguished by the touch-sensitive navigation and programming key and by the power/control terminals with integral sealable tamperproof terminal shield. [b]Suitable for use with the Velbus Energy Management System[/b]This energy meter is the ideal product for monitoring the total domestic energy consumption and imported energy to the net (if local energy production is present). By combining it with a Velbus VMB7IN 7-channel input module, the total consumption or injection into the net is reported over the Velbus network, allowing your home automation system to make smart decisions based on your active energy situation. For example: automatically turning off the heating pump when the total energy consumption is above a certain kWh level, hence limiting the peak energy usage. Thanks to Velbus, you no longer have any surprises by visually representing your energy situation and having devices switch automatically based on preset rules. View our energy management solution on [link url=https://www.velbus.eu/blog/latest-news-1/post/energy-management-with-velbus-22]velbus.eu[/link].

Ominaisuudet

Suitable for three phase system (3 or 4 wire) or single-phase system

Reference current 5 A (80 A Maximum)

Dual S0 outputs, IR communication port and NFC technology

MID certified up to 80 A @ 70°C

Display of total or partial (resettable) consumption: kWh, kVAh, kvarh

2 active energy MID counters + 2 reactive energy nationally certified counters

16 resettable counters

Scroll to view the following instantaneous values: V, A, PF, kW, kVA, kvar, Hz, THD V, THD A, phase angle and direction of power flow

Matrix backlit LCD display

Multi-function touch button

Active energy accuracy Class B according to EN 50470-3 (MID)

Reactive energy accuracy Class 2 to EN 62053-23

Two SO pulse outputs for remote energy monitoring according to EN 62053-31

Sealable tamperproof terminal shield

Protection category II

35 mm rail (EN 60715) mount

Tekniset tiedot

General Specs:

Reference current In: 5 A

Maximum current Imax: 80 A

Starting current Ist: 0,02 A

Minimum measured current Imin: 0.25 A

Current range (within accuracy class): 0.5…80 A

Maximum peak current: 2400 A (10 ms)

Supply (& monitored) voltage Un: 3 x 230/400 V AC

Operating range: (0.8…1.15) UN

Frequency: 50/60 Hz

Power consumption:
