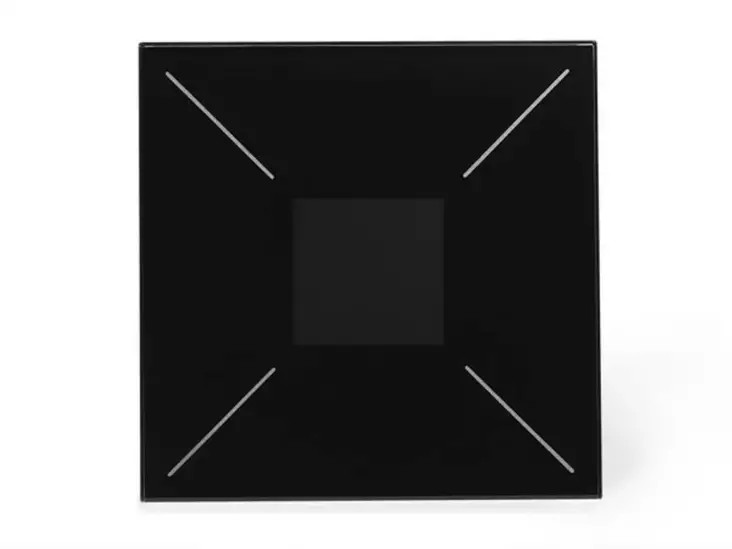

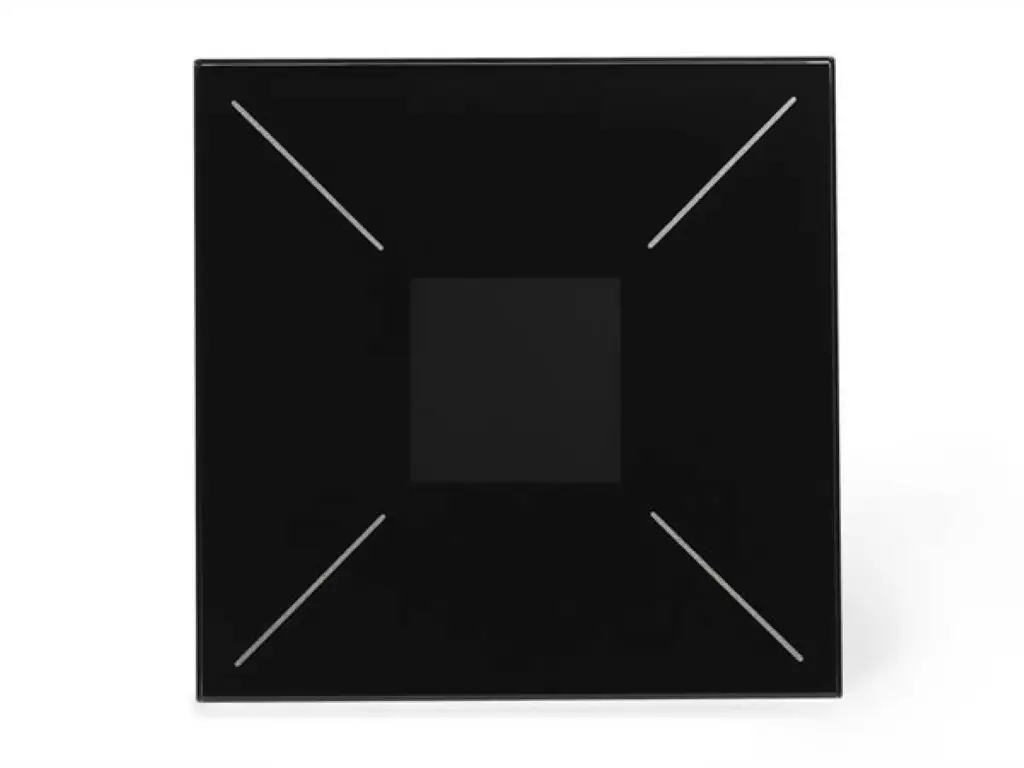

Edge Lit control module with OLED display and temperature controller (Black Edition)

Meet the Velbus Edge Lit panel with OLED display: your ultimate Smart Home Control Hub! Step into a new era of home automation with the most versatile and future-proof control panel in our product portfolio! [b]Experience Effortless Control[/b]Say goodbye to confusion when controlling lights or adjusting settings. Our Edge Lit 4-button control panel features a clear OLED screen, providing crystal-clear visual cues for every function. Your housemates or guests no longer have to guess what each button controls: each screen provides clear instructions and can be adjusted to your preferences. Icons or text, it's your choice! With a staggering capacity of 32 unique buttons, you can control any device you want. Short or long button presses are detected seamlessly, delivering an intuitive and dynamic user experience, making dimming child's play. [b]Stay Informed, Stay Smart[/b]Take control of your home with real-time temperature adjustments and comprehensive information at your fingertips. Gain insight into energy consumption and solar energy production, receive weekly reminders (such as "take out the trash") and access sensor data from one central control panel. [b]Elevate Your Ambiance[/b] Experience the unique Edge Lit feature, which uses RGBW side LEDs to create an captivating halo effect around your control panel. Instantly visualize the status of your installation with personalized light intensity and color settings. Use it as mood light or as a soothing night light. Furthermore, you can unleash the full power of your Velbus installation by automating color changes based on events in your home: the front doorbell ringing, the garage door staying open, excessive energy consumption, and so on. [b]Style Meets Smart Living[/b]Choose your style and take your home automation installation to a higher level with the Velbus VMBELO. Available in a stylish black version (VMBELO-B-20) or a sleek white version (VMBEL0-W-20), this versatile control module can be seamlessly integrated into any interior. Would you like to fully personalize your control panels with your own RAL color? Then we are happy to make customization possible! Please contact your representative to discuss the options.

Ominaisuudet

black edition (also available in white)

configurable by using the Velbus interface ([product name=VMBRSUSB]VMBRSUSB[/product]) and the free [product name=VELBUSLINK]VELBUSLINK[/product] program

feedback/mood lights with RGBW side LEDs (adjustable light intensity and RGB colour or warm white by using [product name=VELBUSLINK]VELBUSLINK[/product])

the light intensity and colour of the feedback and/or mood lights are independently adjustable per side

adjustable button response time (0, 1, 2 or 3 seconds)

detection of short or long button press

configurable multi-channel operation on each push button, the next channel is selected at each press (up to 32 channels)

dual channel push button configurable, a different channel is selected depending on the length of the push (short or long push)

extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate push buttons automatically

integrated temperature sensor to control the heating and air conditioning (only usable when side LEDs are off)

up to a max. of 8 pages with 4 buttons per page (= 32 controls in total)

displays the date, time, controls (max. 32), temperature/thermostat (max. 13), energy, gas or water consumption (max. 4) and it reads analog sensors (max. 4)

local menu to adjust the time, date and thermostat settings

the OLED-display (128 x 128 pixels) can be constantly dimmed or turned off when not in use (screensaver mode)

dynamic texts can be displayed (for example: Sonos info from IoT Gateway)

LED-indication for supply voltage, data and terminator (backside)

uses one address per 8 buttons and one for the thermostat function (optional) (configurable by using VELBUSLINK)

not suitable for installation on electrically conductive surfaces (eg. metal), or nearby sources of electromagnetic disturbances

WAGO KNX/EIB connector for a fast screwless and reliable connection (requires solid core EIB grade cables with 4x 0,8 mm diameter)

compatible with Bticino fixing LN4702 (included)

Tekniset tiedot

Physical properties

Display: Yes

Display type: OLED

Adjustable time-out: No

Motion sensor: No

Temperature sensor: Yes

Thickness glass: 4 mm

Twilight sensor: No

Adjustable light intensity: Yes

Distance glass panel to wall: 7 mm

Glass edition: Frosted

Installation depth: 28 mm

Electrical data

Current consumption: 120 mA

Standby current consumption: 35 mA

Technical data

Mounting type: Built-in, Clamp mounting, Screw mounting, Wall mount

Colour of LEDs: RGBW

Dimmable: Yes

Protocol: Velbus CANbus

Set-up options

Timer range: 1 day, 1 week, 1 year

Environmental data

Operating temperature range: -10-40 °C

Usage location: Indoor only

Operational properties

Instruction manual languages: Dutch, English, French

Astronomical clock: Yes

Maximum program steps: 162

Possible address: 250

Reaction time: 0 s, 1 s, 2 s, 3 s

Number push buttons: 4

Touch technology: SMSC Righttouch®

Power supply

Input voltage rating VDC range: 12-18 V

Included

LED indicator: Yes

Mounting frame included: Yes

Product basic info

Colour unit: Black

Width unit: 86 mm

Weight unit: 160 g

Height unit: 86 mm

Depth unit: 11 mm

Additional material: Galvanized steel, PC (polycarbonate)

Material: Glass
