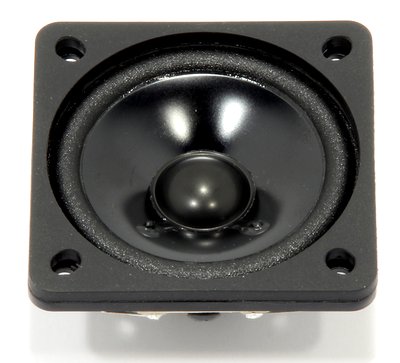

LAAJAKAISTAELEMENTTI VISATON SL 70 NDV - 4 Ohm
6,5 cm (2,5'') LAAJAKAISTAELEMENTTI
26,44 €(Sis.alv)
21,07 €(alv 0%)
- Tuotekoodi: SL70NDV-4OHM
- Takuu: 3 vuotta
kpl
6.5 cm (2.5") full-range speaker with balanced frequency response and increased high-range. Especially suitable as built-in speaker for music and speech reproduction and as driver for slim PA column systems. Water-resistant and robust construction due to various plastic materials. Thanks neodymium extremely light and compact.
*) IP protection class for front side when built into a sealed enclosure
Technical Data
| Rated power | 8 W |
|---|---|
| Maximum power | 15 W |
| Nominal impedance Z | 4 Ohm |
| Frequency response | 150–20000 Hz |
| Mean sound pressure level | 87 dB (1 W/1 m) |
|---|---|
| Excursion limit | +/−3 mm |
| Resonance frequency fs | 220 Hz |
| Magnetic induction | 1,26 T |
| Magnetic flux | 148 µWb |
| Voice coil diameter | 15 mm |
| Height of winding | 3 mm |
| Cutout diameter | 63 mm |
| Net weight | 0,06 kg |
| D.C. resistance Rdc | 3,6 Ohm |
| Mechanical Q factor Qms | 5,18 |
| Electrical Q factor Qes | 3,6 |
| Total Q factor Qts | 2,12 |
| Equivalent volume Vas | 0,28 l |
| Effective piston area Sd | 21,6 cm² |
| Dynamically moved mass Mms | 0,9 g |
| Force factor Bxl | 1,18 Tm |
| Connections | 3,0 x 0,5 mm (+) 3,0 x 0,5 mm (−) |
| Protective system | IP 65 *) |
| Temperature range | −40 ... 80 °C |
