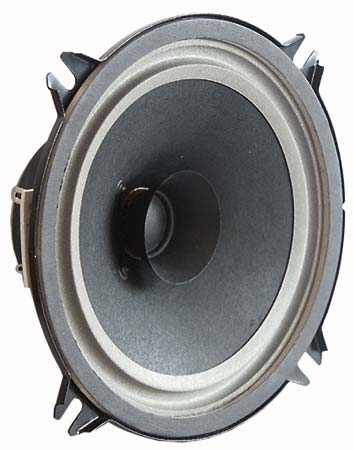

LAAJAKAISTAELEMENTTI VISATON FR 13 4 OHM

13 cm (5") full-range loudspeaker with an inverted cone. Uniform frequency response and powerful low-frequency output. Simple installation e.g. in vehicles with loudspeaker mounts for 13 cm loudspeakers.

Typical applications:
- Built into cars, busses or trains
- Electronic musical instruments
- Monitoring speaker for electronic devices

Technical Data:
Rated power	30 W
Maximum power	50 W
Nominal impedance Z	4 Ohm
Frequency response	65–20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	65°/4000 Hz
Excursion limit	+/−2,5 mm
Resonance frequency fs	100 Hz
Magnetic induction	0,85 T
Magnetic flux	160 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	6 mm
Cutout diameter	116 mm
Net weight	0,29 kg
D.C. resistance Rdc	3,4 Ohm
Mechanical Q factor Qms	5,17
Electrical Q factor Qes	1,64
Total Q factor Qts	1,25
Equivalent volume Vas	6,1 l
Effective piston area Sd	87 cm²
Dynamically moved mass Mms	4,5 g
Force factor Bxl	2,3 Tm
Inductance of the voice coil L	0,2 mH
Temperature range	−25 ... 100 °C
