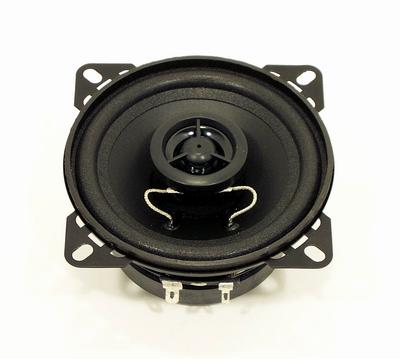

KOAKSIAALIELEMENTTI VISATON PX 10 4 OHM

10 cm (4") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Polypropylene cone
- Metal basket
- Coaxial speaker

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	4 Ohm
Frequency response	70–18000 Hz
Mean sound pressure level	83 dB (1 W/1 m)
Opening angle (-6 dB)	107°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	110 Hz
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	5,2 mm
Cutout diameter	93 mm
Net weight	0,385 kg
Temperature range	−25 ... 70 °C
