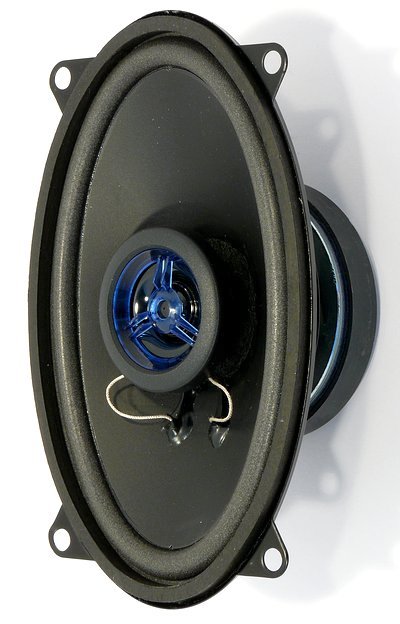

KOAKSIAALIELEMENTTI VISATON DX 4x6 4 OHM

Oval 2-way coax speaker with polypropylene diaphragm and European standard basket. Integrated crossover (capacitor type) for the tweeter. Simple fitting in vehicles with cut-outs for 9 x 15 cm speakers. Includes fitting materials. Typical applications: - Vehicles, - Mobile homes.

Technical Data:
Rated power	30 W
Maximum power	50 W
Nominal impedance Z	4 Ohm
Frequency response	65–22000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	140°/4000 Hz hor. 180°/4000 Hz vert.
Excursion limit	+/−1,5 mm
Resonance frequency fs	90 Hz
Magnetic induction	1 T
Magnetic flux	190 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm / 14 mm
Height of winding	5 mm
Cutout diameter	88 x 144 mm (oval)
Net weight	0,423 kg
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−25 ... 70 °C
