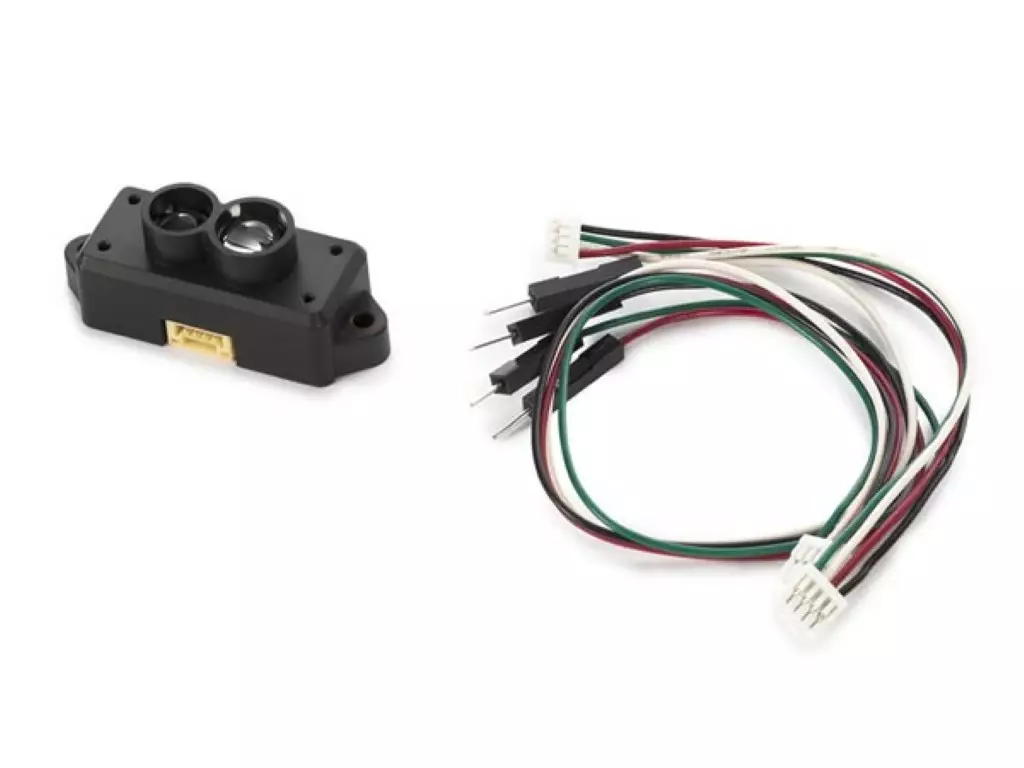

TFMINI TIME-OF-FLIGHT LIDAR MODULE

The TFMINI TIME-OF-FLIGHT LIDAR MODULE is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object as close as 30 centimetres and as far as 12 meters! This sensor features unique optical and electrical designs, ensuring stable, precise, high sensitivity and high-speed distance detection. And did we mention it is also very tiny?

The sensor comes with an easy to use breadboard friendly cable. The four male wires make it easy to use with Arduino development boards and other platforms with female headers. The package also includes a female to female connector to use with quick prototyping boards.

Tekniset tiedot

operating range: 0.3 m - 12 m

maximum operating range at 10% reflectivity: 5 m

average power consumption: 0.6 W

applicable voltage range: 5 V

minimum resolution ratio: 1 cm

frequency: 100 Hz

accuracy: 1% (less than 6 m), 2% (6 m-12 m)

distance detection unit: cm

wavelength: 850 mm

communication interface: UART 115200

LED peak current: 800 mA

serial port TTL voltage level: 3.3 V

dimensions: 42 ×15 ×16 mm (1.65 x 0.6 x 0.62")

operating temperature: -20 to +60 °C

weight: 4.7 g
