Weatherproof mulion mount access control reader keypad

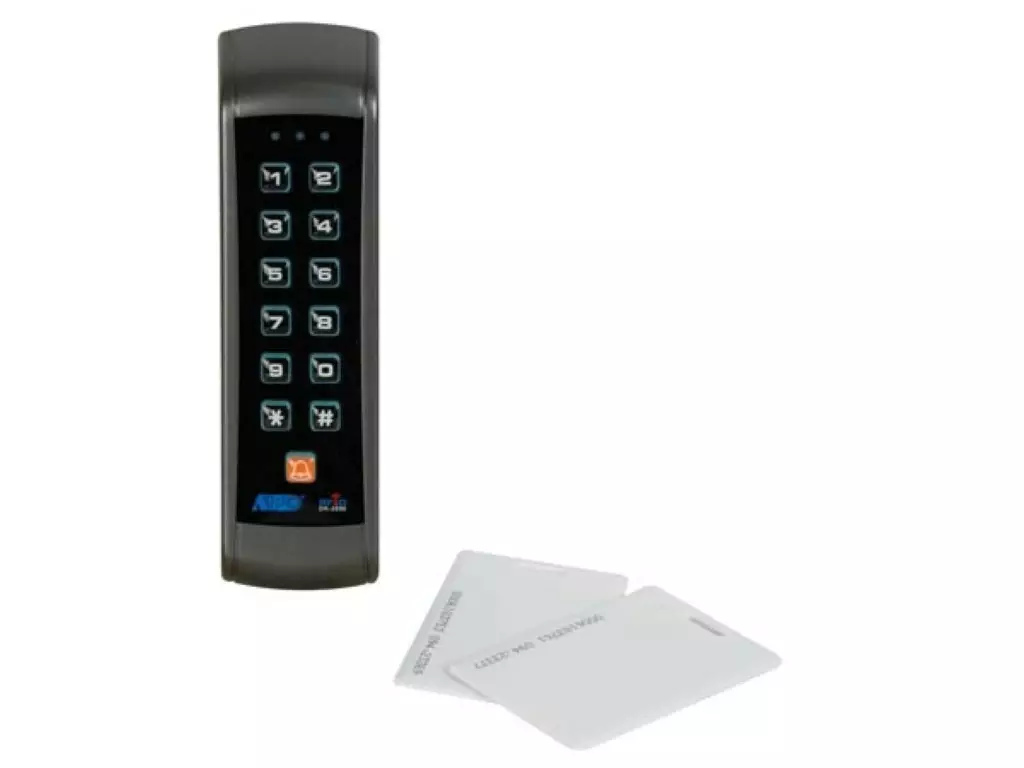

The HAA2890 is a weatherproof, self-contained, mullion mount compact keypad, combining the functions of digital keypad and proximity EM card reader in one unit.
Ominaisuudet:
durable epoxy coated back-lit key board with doorbell button • vertical mount weatherproof plastic housing • operated with PIN codes & EM cards • self-contained, stand-alone operation • built-in data I/O port expandable for split-decoded operation • relay output contacts for door strike and doorbell • dual illumination level, user friendly for low-lit environment • programmable user codes, visitor codes and master code • stand-alone electrical access control • compatible with Fail-secure or Fail-safe electrical lock • programmable intelligent egress button: controls possible with delay, warning and button contact ways of momentary or holding contact • common user PIN, group user PINs & private user PINs for working with the EM card at various levels of security • extremely long programmable timer for output relay: 1 second up to over 24 hours • optional: •• access card: HAA2866/TAG •• access card keyhanger: HAA2866/TAG2 • user manual: english
Tekniset tiedot:
housing: ABS • operating voltage: 11 - 15Vdc • current: 60 - 90mA • output relay 1: NC+ NO dry contacts 2A / 24Vdc max. • output relay 2: NO dry contact 2A / 24Vdc max. • tamper switch: NC dry contact 50mA / 12Vdc • operating temperature: -20°C ~ +70°C • humidity: 5~95% RH, non condensing • IP rating: IP55 • weight: 160g • dimensions (HxWxD): 168.5 x 46.5 x 24mm
