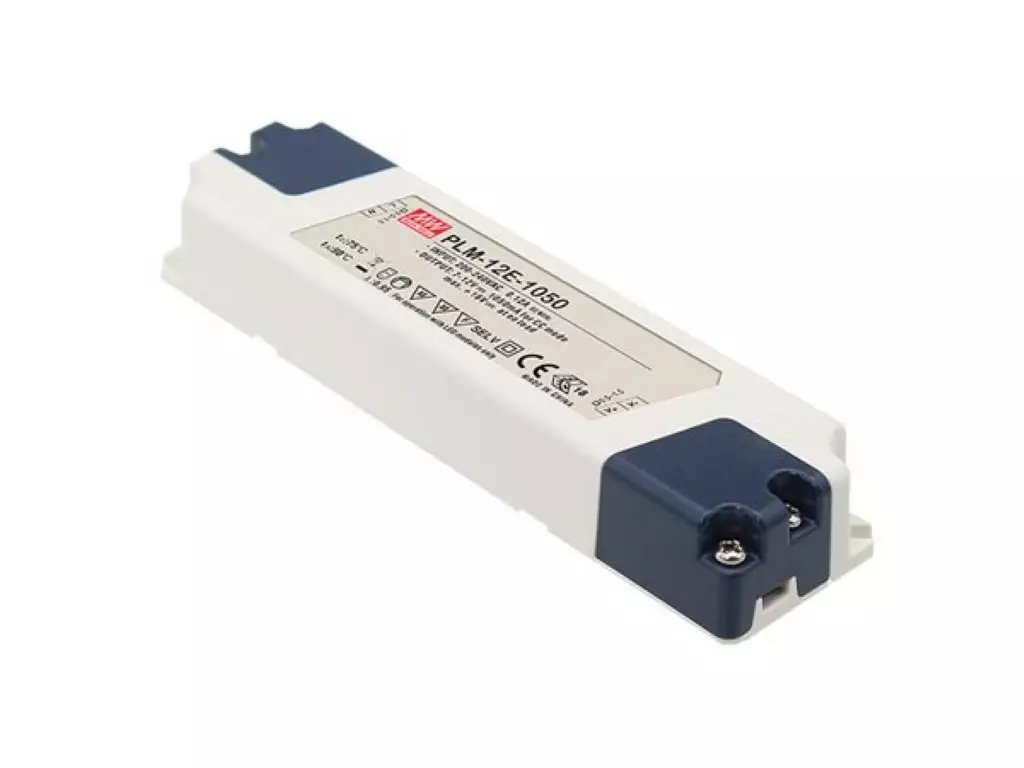

LED TEHOLÄHDE - YKSI LÄHTÖ - 12 W - 42 V
Ominaisuudet 230 VAC only or full range (up to 295 VAC) models available built-in active PFC function constant current design protections: short circuit cooling by free air convection fully isolated... Lue lisää
Tarjoustuote!
34,70 €(Sis.alv)
27,65 €(alv 0%)
tai 10 kpl hintaan 27,59 € / kpl(Sis.alv)
- Tuotekoodi: PLM-12E-350
- Takuu: 1 vuosi
- Paino: 0.12 kg
- Toimittajan saatavuus: 28 kpl
Tilaa kerralla useampi ja säästä!
| Määrä | Hinta á |
|---|---|
1kpl | 34,70 €/ kpl |
5kpl | 29,12 €/ kpl-5,59 €/ kpl |
10kpl | 27,59 €/ kpl-7,11 €/ kpl |
kpl
Ominaisuudet
230 VAC only or full range (up to 295 VAC) models available
built-in active PFC function
constant current design
protections: short circuit
cooling by free air convection
fully isolated plastic case
class II power unit, no FG
no load power consumption <0.5W
high reliability, low cost
Tekniset tiedot
output:
constant current region: 22 - 36 V
rated current: 0.35 A
no load output voltage: 42 V
rated power: 12.6 W
ripple & noise (max): 5.5 Vp-p
current: ± 5.0%
setup time: 500 ms / 230 VAC at full load
input:
voltage range: 180 - 295 VAC, 254 - 417 VDC
frequency range: 47 - 63 Hz
power factor: PF > 0.95 / 230 VAC, PF > 0.9 / 277 VAC (at full load)
total harmonic: THD < 20% when output loading > 60% at 230 VAC input and output loading > 75% at 277 VAC input
efficiency: 84 %
AC current: 0.08 A / 230 VAC, 0.07 A / 277 VAC
inrush current: cold start 15 A (twidth=50µs measured at 50% Ipeak) at 230 VAC
max. no. of PSUs on 16 A circuit breaker: 160 units (circuit breaker of type B) / 160 units (circuit breaker of type C) at 230 VAC
leakage current: 0.25 mA / 240 VAC
protection:
short circuit: hiccup mode, recovers automatically after fault condition is removed
environment:
working temperature: -30 - +50 °C
working humidity: 20 - 90% RH non-condensing
storage temperature, humidity: -40 - +80 °C, 10 - 95% RH
temperature coefficient: ±0.06% / °C (0 - 50 °C)
vibration: 10 - 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
safety & EMC:
safety standards: ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1, IP30 approved
withstand voltage: I/P-O/P:3.75K VAC
isolation resistance: I/P-O/P:100M Ohms / 500 VDC / 25 °C / 70% RH
EMC emission: compliance to EN55015, GB17743, GB17625.1,EN61000-3-2 Class C(>60% load);EN61000-3-3
EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11;EN61547, light industry level, criteria B(surge 2KV)
others:
MTBF: 808.162K hrs min. MIL-HDBK-217F (25 °C)
dimensions: 145 x 38 x 22 mm (L x W x H)
