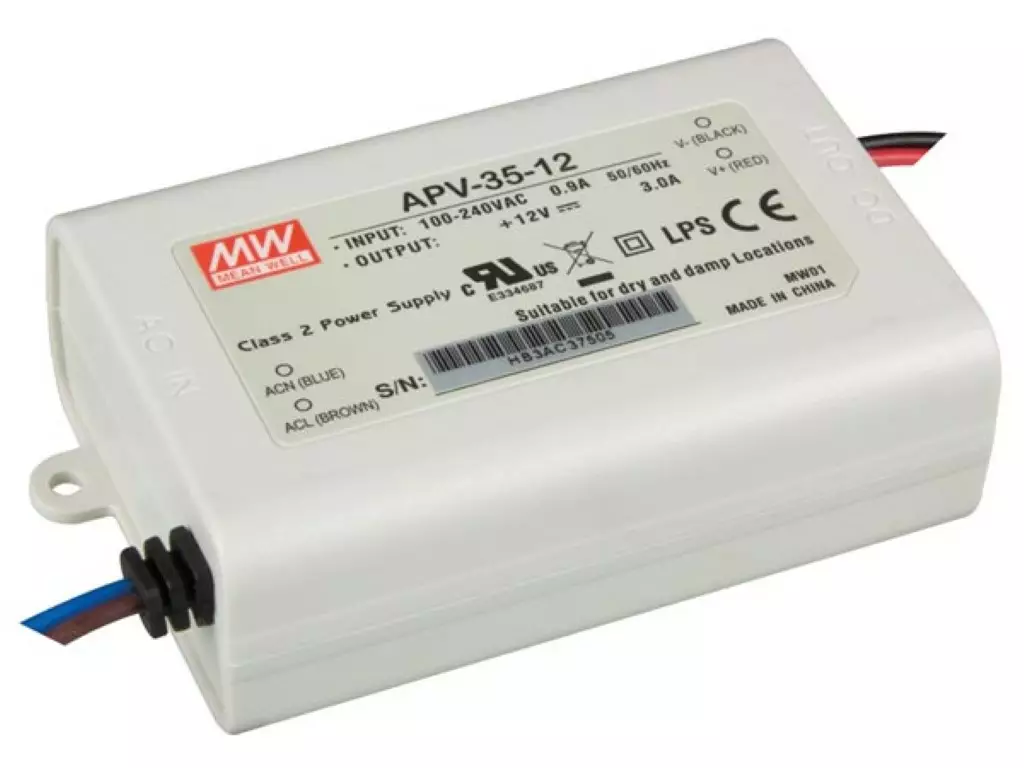

LED TEHOLÄHDE VAKIOJÄNNITE - 35W - 12VDC

Ominaisuudet

• Constant voltage mode power supply
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Small and compact size
• Fully isolated plastic case
• IP30 design
• Pass LPS
• Suitable for LED lighting and moving sign applications (Note.8)
• Low cost, high reliability
• 100% full load burn-in test
• 2 years warranty
• FOR PROFESSIONAL USE
• This device must be installed by a qualified person.

Tekniset tiedot

• OUTPUT:
  • DC VOLTAGE: 12V
  • RATED CURRENT: 3A
  • CURRENT RANGE: 0~3A
  • RATED POWER : 36W
  • RIPPLE & NOISE (max) Note. 2: 150mVp-p
  • VOLTAGE TOLERANCE Note.3: +/-5.0%
  • LINE REGULATION: +/-1.0%
  • LOAD REGULATION: +/-2.0%
  • SETUP, RISE TIME Note.6: 1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
  • HOLD UP TIME (Typ.): 20ms/230VAC 12ms/115VAC at full load
• INPUT:
  • VOLTAGE RANGE Note.4: 90~264VAC 127~370VDC
  • FREQUENCY RANGE: 47~63Hz
  • EFFICIENCY (Typ.): 83%
  • AC CURRENT (Typ.): 0.5A/230VAC 0.75A/115VAC
  • INRUSH CURRENT(max.): COLD START 45A (twidth=440µs measured at 50% lpeak) at 230VAC
  • LEAKAGE CURRENT: 0.25mA/240VAC
• PROTECTION:
  • OVERLOAD:
    • 110~160% rated output power
    • Protection type : Hiccup mode, recovers automatically after fault condition is removed
  • OVER VOLTAGE:
    • 13.8~16.2V
    • Protection type : Shut down o/p voltage, re-power on to recover
• ENVIRONMENT:
  • WORKING TEMP.: -30~70°C (referring to" Derating curve")
  • WORKING HUMIDITY: 20 ~ 90% RH non-condensing
  • STORAGE TEMP., HUMIDITY: -40 ~ +80°C, 10 ~ 95% RH
  • TEMP. COEFFICIENT: +/-0.03%/°C(0 ~ 50°C)
  • VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
• SAFETY & EMC:
  • SAFETY STANDARDS: UL8750 , CSA-C22.2 No. 250.0-13 approved; design refer to EN60950-1
  • WITHSTAND VOLTAGE: I/P-O/P:3KVAC
  • SOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH
  • EMC EMISSION: Compliance to EN55022,EN61000-3-2 Class A,EN61000-3-3
  • EMC IMMUNITY: Compliance to EN55024,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
• OTHERS:
  • MTBF: 692.8K hrs min. MIL-HDBK-217F (25°C)
  • DIMENSION: 84*57*29.5mm (L*W*H)
  • PACKING: 0.18Kg; 72pcs / 14Kg/ 0.92CUFT
• FOR PROFESSIONAL USE ONLY
• This device must be installed by a qualified person
