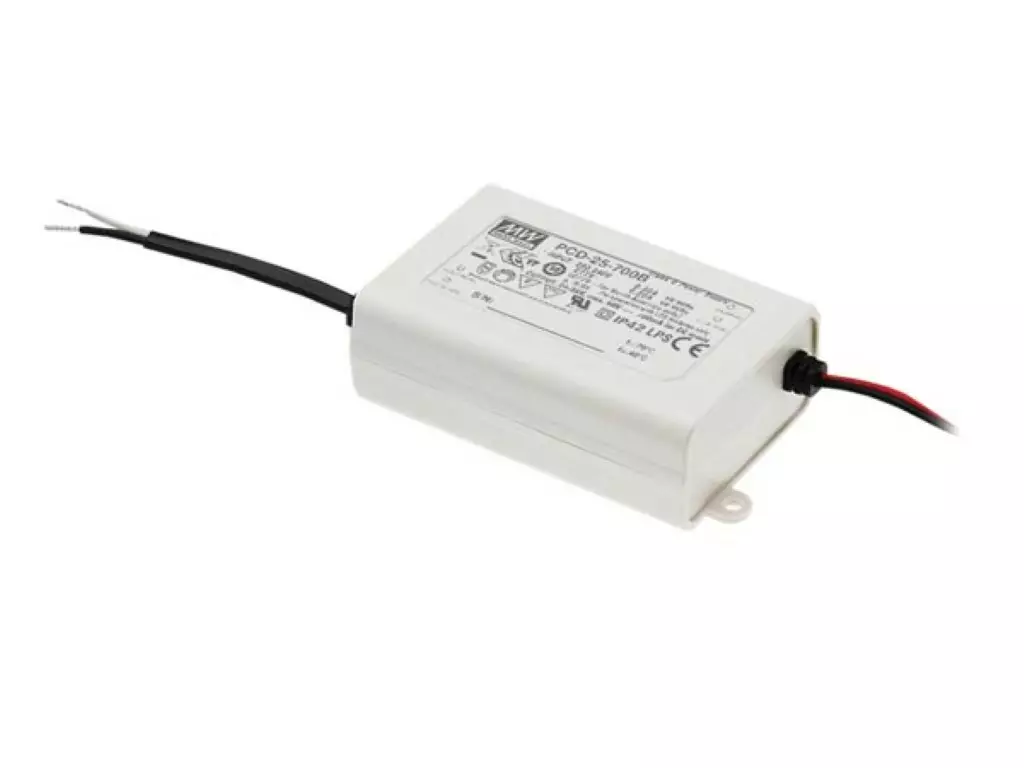

LED TEHOLÄHDE - HIMMENNETTÄVÄ - YKSI LÄHTÖ - 25 W - 50 V
Ominaisuudet AC phase-cut dimming work with leading edge and trailing edge TRIAC dimmers 115 VAC or 230 VAC models available built-in active PFC function constant current design protections: short... Lue lisää
Tarjoustuote!
66,02 €(Sis.alv)
52,60 €(alv 0%)
tai 10 kpl hintaan 52,48 € / kpl(Sis.alv)
- Tuotekoodi: PCD-25-700B
- Takuu: 1 vuosi
- Paino: 0.18 kg
- Toimittajan saatavuus: 4 kpl
Tilaa kerralla useampi ja säästä!
| Määrä | Hinta á |
|---|---|
1kpl | 66,02 €/ kpl |
5kpl | 55,40 €/ kpl-10,61 €/ kpl |
10kpl | 52,48 €/ kpl-13,54 €/ kpl |
kpl
Ominaisuudet
AC phase-cut dimming
work with leading edge and trailing edge TRIAC dimmers
115 VAC or 230 VAC models available
built-in active PFC function
constant current design
protections: short circuit / over temperature
cooling by free air convection
fully isolated plastic case
IP30 design
class II power unit, no FG
class 2 power unit
suitable for indoor LED lighting applications
100% full load burn-in test
high reliability, low cost
Tekniset tiedot
output:
rated current: 700 mA
operating voltage range: 24 - 36V
current accuracy: ± 5.0 %
rated power: 25.2 W
ripple & noise (max): 2.7 Vp-p
no load output voltage (max): 50 V
setup time: 500 ms / 230 VAC 2000 ms / 115 VAC at full load
input:
frequency range: 47 - 63 Hz
power factor (typ): PF>0.9 / 115 VAC, PF> 0.9 / 230 VAC, PF>0.9 / 277V AC at full load
efficiency (typ): 81%
AC current: 0.6 A / 115 VAC 0.3 A / 230 VAC 0.2 A / 277 VAC
inrush current (max): cold start 10 A (twidth=20µs measured at 50% Ipeak) at 115 VAC / 230 VAC
leakage current: <0.5 mA 120 VAC / 240 VAC
protection:
short circuit: hiccup mode, recovers automatically after fault condition is removed
over temperature: shut down o/p voltage, re-power on to recover
environment:
working temperature: -30 - +60 °C
working humidity: 20 - 95% RH non-condensing
storage temperature, humidity: -40 - +80°C, 10 - 95% RH
temperature coefficient: ±0.03% / °C (0 - 50 °C)
vibration: 10 - 500 Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
safety & EMC:
safety standards: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only),
IP30 approved ; design refer to UL60950-1, TUV EN60950-1, EN61347-1, EN61347-2-13
withstand voltage: I/P-O/P:3.75KVAC
isolation resistance: I/P-O/P:100M Ohms / 500VDC / 25?/ 70% RH
EMC emission: compliance to EN55015 (B type only), EN61000-3-2 Class C ; EN61000-3-3, FCC part 18 non-consumer equipment (A type only)
EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN61547, light industry level, criteria A
others:
MTBF: 906.5K hrs min. MIL-HDBK-217F (25°C)
dimension: 84 x 57 x 29.5 mm (L x W x H)
Tekniset tiedot
IP30 approved ; design refer to UL60950-1, TUV EN60950-1, EN61347-1, EN61347-2-13
