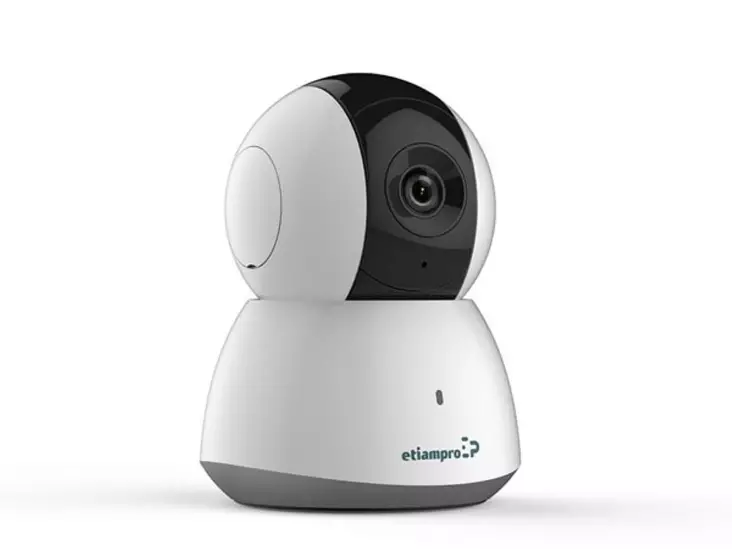

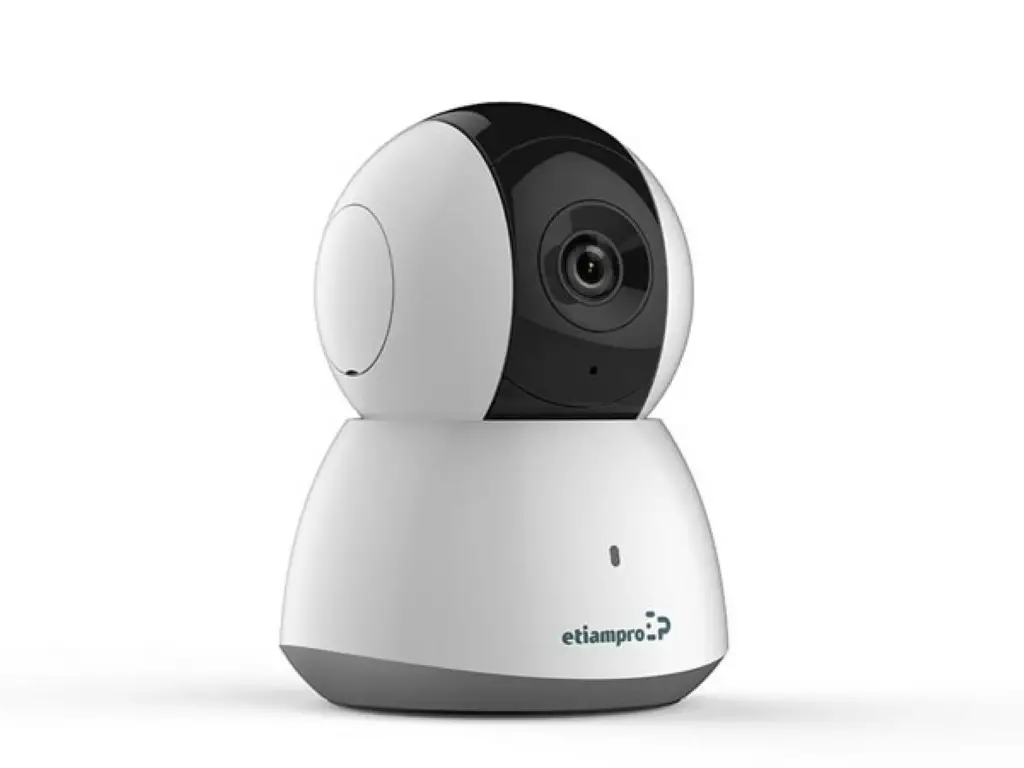

IP PT WIFI MINI CAMERA

2 megapixel IP indoor mini camera with pan-tilt function. This camera is the perfect solution to monitor your kitchen or living room. The camera is equipped with a lan and wifi connection. Images can be recorded on an internal SD-card or via an external network video recorder. The camera has IR LED built-in for night surveillance up to 10 meter.

Ominaisuudet

up to 2.0 megapixel high resolution

2 video streams

2.8 mm fixed lens

digital wide dynamic range

3D digital noise reduction

built-in microphone and speaker, supports two-way audio

supports on-board storage, up to 128 GB

up to 10 m IR range

built-in Wi-Fi

5 VDC ±10 %, micro USB interface

mobile monitoring via mobile application

user manual: English only

various applications

Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]

iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]

Windows software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

iOS software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

Tekniset tiedot

camera:

image sensor: 1/2.8" progressive scan CMOS

min. illumination: 0.01 lux @ F1.2 (AGC on) - 0 lux with IR

shutter speed: 1/3 s - 1/100,000 s

iris: F2.0

lens: 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124°

lens mount: M12

day & night: IR cut filter with auto switch

DNR: 3D DNR

wide dynamic range: digital WDR

pan / tilt: pan: 0° - 355°; tilt: -10° - 90°

compression standard:

video compression: main stream: H. 264; sub-stream: H.264/MJPEG

H.264 type: baseline profile / main profile

video bit rate: 32 Kbps - 8 Mbps

audio compression standard: G.711/G.722.1/G.726/MP2L2/PCM

audio compression rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

image:

max. resolution: 1920 x 1080

main stream: 50 Hz: 25 fps (1920 × 1080, 1280 ×720)

max. frame rate: 60 Hz: 30 fps (1920 × 1080, 1280 ×720)

sub-stream: 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

max. frame rate: 60 Hz: 30 fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

image settings: brightness, saturation, sharpness, contrast are adjustable via client software

day/night switch: auto/scheduled

backlight compensation: supported zone optional

region of interest: supports 1 fixed region for each stream

audio:

environment noise filter: yes

audio I/O: supports mono soundtrack

audio sampling rate: max. 16 kHz

network:

network storage: supports micro SD/SDHC/SDXC card, up to 128 GB local storage

detection: motion detection

alarm trigger: video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login

protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x

standard: ISAPI

general functions: one-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

API: ONVIF (PROFILE S, PROFILE G), ISAPI

simultaneous Live View: up to 6 channels

user / host: up to 32 users; 3 levels: Administrator - Operator - User

interface:

network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet port

on-board storage: built-in micro SD/SDHC/SDXC slot, up to 128 GB

audio interface: 1 built-in microphone, 1 built-in speaker

reset: yes

Wi-Fi:

wireless standards: IEEE802.11b, 802.11g, 802.11n

frequency range: 2.4 GHz - 2.4835 GHz

channel bandwidth: 20/40 MHz

protocols: 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

transfer rates: 11b: 11 Mbps, 11g: 54 Mbps, 11n: up - 150 Mbps

wireless range: 50 m (performance varies based on actual environment)

general:

operating conditions: -10 °C - 40°C (14 °F - 104 °F), humidity 95% or less (non-condensing)

power supply: DC 5V ± 10 %, micro USB interface

max. current: 1.4 A

power consumption: max. 7 W

max. IR range: 10 m

material: plastic

dimensions: F 87.5 × 120.9 mm (F 3.5'' × 4.8'')

weight: 295 g (0.7 lb)
