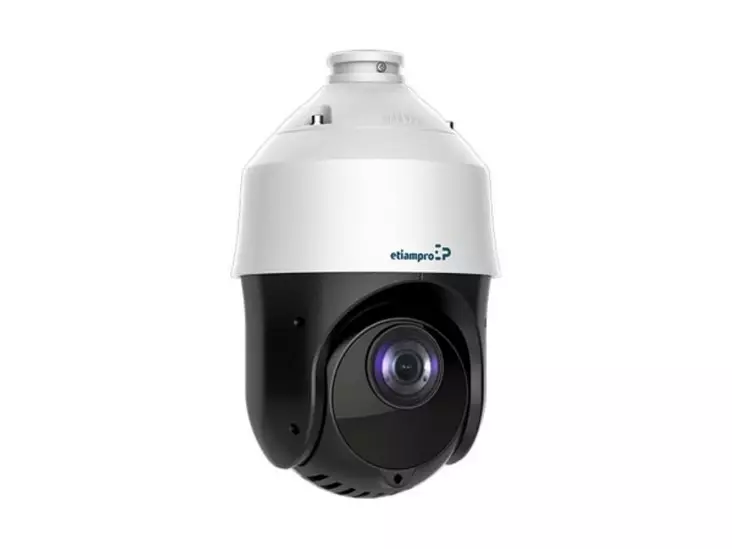

IP CAMERA - PTZ MODEL

2 megapixel IP speed dome Pan-Tilt-Zoom camera. The camera has high power IR LEDs built-in for night surveillance up to 100 meter. The high performance zoom lens has an optical zoom of 15x. With its 120 dB Wide Dynamic Range (WDR) technology image fidelity without detail loss is guaranteed Optimal compression supporting H.265+ With no difficult IP setup and only one cable for power and data, the PoE feature connects cameras and NVRs quickly and easily.

Ominaisuudet

1/2.8" progressive scan CMOS

up to 1920 x 1080 @30 fps resolution

up to 100 m IR distance

15x optical zoom, 16x digital zoom

120 dB WDR, 3D DNR, HLC, BLC, Smart IR

12 VDC & PoE (802.3at, class 4)

supports H. 265+ / H. 265 video compression

up to 24 programmable privacy masks

supports ROI

user manual: English only

various applications

Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]

iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]

Windows software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

iOS software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

Tekniset tiedot

camera:

image sensor: 1/2.8" progressive scan CMOS

min. illumination: colour: 0.005 lux @ F1.6 (AGC on); black/white: 0.001 lux @ F1.6 (AGC on); 0 lux with IR

white balance: auto / manual / ATW (auto-tracking white balance) / indoor / outdoor / fluorescent lamp / sodium lamp

AGC: auto / manual

shutter time: 1/1 s-1/30,000 s

day & night: IR cut filter

digital zoom: 16x

privacy mask: 24 programmable privacy masks

focus mode: automatic / semi-automatic / manual

WDR (Wide Dynamic Range): 120 dB

lens:

focal length: 5 mm - 75 mm, 15x optical

zoom speed: 2.4 s (optical lens, wide-tele)

field of view: horizontal: 53.8° - 4.0°; vertical: 31.9° - 2.3°; diagonal: 60.4° - 4.6°

working distance: 10 mm - 1500 mm (wide-tele)

aperture range: F1.6 to F3.0

IR:

max. IR range: 100 m

smart IR: yes

PTZ:

movement range: 360° endless

pan speed: configurable, from 0.1°/s to 80°/s; preset speed: 80°/s

movement range (tilt): from -15° to 90° (auto-flip)

tilt speed: configurable, from 0.1°/s to 80°/s; preset speed: 80°/s

proportional zoom: yes

presets: 300

patrol scan: 8 patrols, up to 32 presets for each patrol

pattern scan: 4 pattern scans, record time over 10 minutes for each scan

power-off memory: yes

park action: preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan

PTZ position display: yes

preset freezing: yes

scheduled task: preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan / dome reboot / dome adjust

compression standard:

video compression: main stream: H. 265+ / H. 265 / H. 264+ / H. 264; sub stream: H. 265 / H. 264 / MJPEG; third stream: H. 265 / H. 264 / MJPEG

H.264 type: main profile / high profile / baseline profile

H. 264+: yes

H. 265 type: main profile

H. 265+: yes

video bit rate: 32 Kbps - 16384 Kbps

SVC: yes

smart feature set

basic event detection: motion detection, video tampering detection, exception detection

smart event detection: intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

ROI encoding: main stream, sub-stream and third stream respectively support four fixed areas

smart record: ANR (automatic network replenishment), dual-VCA

image:

max. resolution: 1920 x 1080

main stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)

max. frame rate: 60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)

sub-stream: 50 Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)

max. frame rate: 60 Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)

image enhancement: HLC / BLC / 3D DNR / Defog / EIS / Regional exposure / Regional Focus

network:

network storage: built-in memory card slot, supports Micro SD / SDHC / SDXC, up to 256 GB; NAS (NPS, SMB / CIPS), ANR

protocols: IPv4/IPv6, HTTP, HTTPS, 802.1, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API: open-ended, supports ONVIF, ISAPI, and CGI

simultaneous live view: up to 20 channels

user / host: up to 32 users; 3 levels: Administrator - Operator - User

security measures: user authentication (ID and PW), host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

web browser: IE 8 to 11, Chrome 31.0-44, Firefox 30.0-51

interface:

network interface: 1 RJ45 10/100 Mbps Ethernet interface; PoE (802.3at, class4)

general:

power: 12 VDC, 2.0 A and PoE (802.3at), 42.5 - 57 VDC, 0.6 A, class4; max.: 18W (IR light 6W max.)

working temperature: -30 °C - 65 °C (-22 °F - 149 °F)

working humidity: < 90%

ingress protection: IP66 standard; TVS 4000V lightning protection, surge protection and voltage transient protection

material: ADC 12, PC+10% GF

dimensions: Ø 165.9 mm x 290 mm (Ø 6.53" x 11.42")

weight: 2500 g (5.51 lb.)
