HD CCTV CAMERA - HD TVI - VARIFOCAL - MUSTA

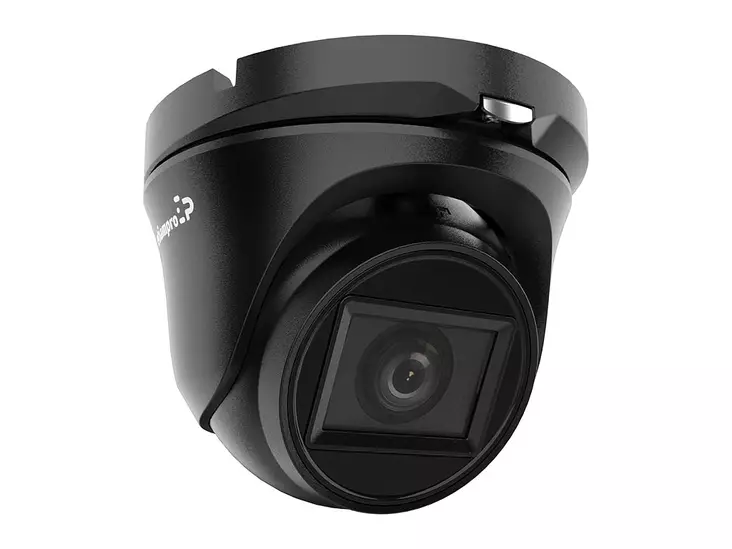

This indoor/outdoor turret-type HD CCTV camera is equipped with a 2 MP CMOS image sensor and has a video quality of 1080P. It has a 4 in 1 video output switchable between HD-TVI, AHD, HD-CVI or CVBS (analog).
High performance in low light conditions thanks to its advanced IR technology [b](night vision up to 70 m)[/b] and delivering clean and sharp images even with strong back light thanks to true WDR technology. With the powerful motorized varifocal lens you can effortlessly approach any object.

Ominaisuudet

2 MP high-performance CMOS

ultra low light

1920 x 1080 resolution

2.7 mm to 13.5 mm varifocal lens

OSD menu, 3D DNR, 120 dB true WDR, day/night switch

EXIR2.0, smart IR, up to 70 m IR distance

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

IP66

user manual: English only

Tekniset tiedot

camera:

image sensor: 2 MP CMOS image sensor

signal system: PAL/NTSC

video frame rate: PAL: 1080p@25fps; NTSC: 1080p@30fps

resolution: 2 MP motorized lens turret

min. illumination: 0.005 lux @ F1.2 (AGC on) - 0 lux with IR

shutter time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

slow shutter: max. 16 times

lens: 2.7 mm - 13.5 mm

horizontal field of view: 102.4° - 31°

lens mount: Ø14

day & night: IR cut filter

angle adjustment: pan: 0° - 360°; tilt: 0° - 75°; rotation: 0° - 360°

synchronization: internal synchronization

WDR (Wide Dynamic Range): 120 db

menu:

AGC: high / medium / low

D/N mode: auto / colour / black and white

image mode: 2 MP motorized lens turret

HLC: yes

BLC: yes

WDR: yes

language: English

functions: brightness, sharpness, 3D DNR, mirror, smart IR

interface:

video output: 1 HD analog output

switch button: TVI / AHD / CVI / CVBS

general:

operating conditions: -40 °C - 60 °C (-40 °F - 140 °F); humidity 90% or less (non-condensing)

power supply: 12 VDC ± 25%

power consumption: max. 7.7 W

IP rating: IP66

material: metal

max. IR range: 70 m

dimensions: Ø 123.86 mm x 103.9 mm (Ø 4.87" x 4.1")

weight: ± 606 g (1.34 lb)
