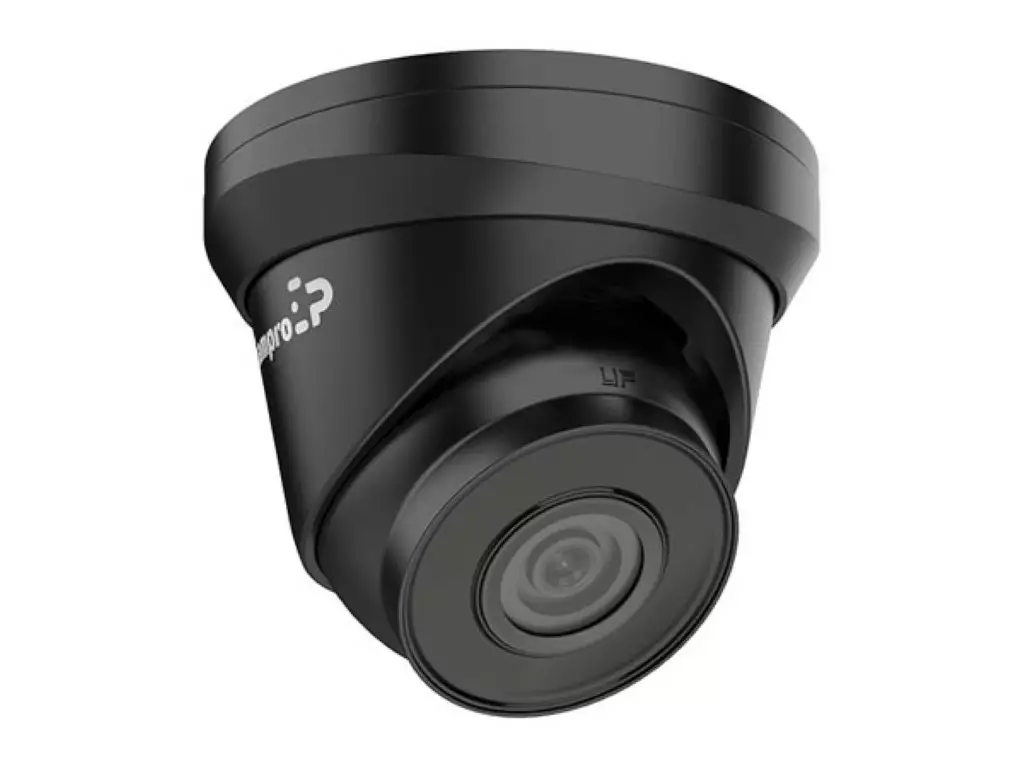

4 MP FIXED NETWORK TURRET CAMERA (IP) - BLACK

4 megapixel IP indoor/outdoor turret-type camera. The camera has high power IR LEDs built-in for night surveillance up to 30 meter. With its Wide Dynamic Range (WDR) technology image fidelity without detail loss is guaranteed. Optimal compression supporting H.265+. With no difficult IP setup and only one cable for power and data, the PoE feature connects cameras and NVRs quickly and easily.

Ominaisuudet

1/3" progressive scan CMOS

2560 x 1440 @20 fps

2.8 mm fixed lens

H. 265+ / H. 265 / H. 264+ / H. 264 video formats

3D DNR

up to 30 m IR range

IP67

various applications

Android app: [link url=https://play.google.com/store/apps/details?id=com.mcu.guardingvision&hl=nl&gl=US]Guarding Vision[/link]

iOS app: [link url=https://apps.apple.com/us/app/guarding-vision/id1101697283#?platform=iphone]Guarding Vision[/link]

Windows software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

iOS software: [link url=https://www.velleman.eu/support/downloads/?code=ENVR104]Guarding Vision[/link]

Tekniset tiedot

camera:

image sensor: 1/3" progressive scan CMOS

min. illumination: colour: 0.01 lux @ F2.0 (AGC on)

shutter speed: 1/3 s - 1/100,000 s

slow shutter: yes

auto-iris: no

day & night: IR cut filter

digital noise reduction: 3D DNR

WDR: 120 dB true WDR

angle adjustment: pan: 0° - 360°, tilt: 0° - 75°, rotation: 0° - 360°

lens:

focal length: 2.8 mm

aperture: F2.0

focus: fixed

field of view: 2.8 mm, horizontal 98°, vertical 53.1°, diagonal 114.7°

lens mount: M12

IR:

max. IR range: 30 m

wavelength: 850 nm

compression standard:

video compression: main stream: H. 265+ / H. 265 / H. 264+ / H. 264: sub stream: H. 265 / H. 264 / MJPEG

H.264 type: main profile / high profile / baseline profile

H. 265 type: main profile

video bit rate: 32 kbps - 8 Mbps

smart feature set

region of interest: 1 fixed region for main stream and sub-stream

image:

max. resolution: 2560 x 1440

main stream: 50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)

max. frame rate: 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)

sub-stream: 50 Hz: 25 fps (640 x 480, 640 x 360)

max. frame rate: 60 Hz: 30 fps (640 x 480, 640 x 360)

image enhancement: BLC, 3D DNR

image settings: saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

day/night switch: auto/scheduled, day, night

network:

alarm trigger: motion detection, video tampering alarm, illegal login

protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

general functions: anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

firmware version: V5.5.120

API: ONVIF (PROFILE S), ISAPI

simultaneous live view: up to 6 channels

user/host: up to 32 users; 3 levels: Administrator - Operator - User

web browser: IE10+, Chrome 57.0+, Firefox 52.0+

interface:

network interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet port

general:

operating conditions: -30 °C - 60 °C (-22 °F - 140 °F), humidity 95 % or less (non-condensing)

power supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)

power consumption and current: 12 VDC, 0.4 A, max: 5 W; PoE: (802.3af, 36 V - 57 V), 0.2 A - 0.1 A, Max: 6.5 W

IP rating: IP67

material: camera body: metal, bottom base: plastic

dimensions: Ø 112 mm x 81.5 mm (Ø 4.41" x 3.21")

weight: 320 g (0.7 lb.)
