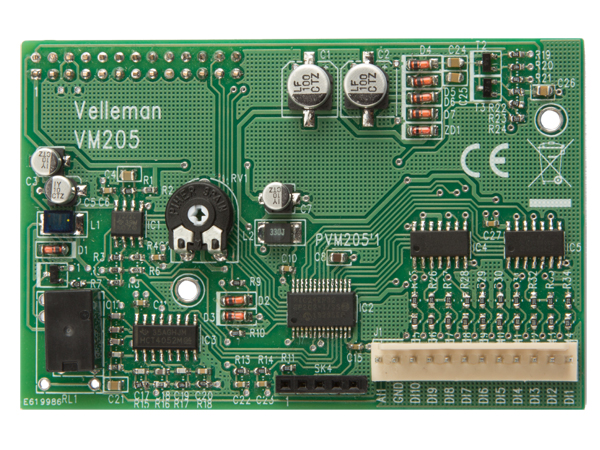

RASPBERRY PI OSKILLOSKOOPPI JA LOGIIKKA-ANALYSAATTORI SHIELD

Do you have a RaspberryPi? Add this shield and you also own a digital storage oscilloscope!
The shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.

Tekniset tiedot

• oscilloscope:
  • maximum sample rate : 1MS/s
  • input amplifier bandwidth : 200kHz (-3dB)
  • measurements can be performed up to: 100kHz
  • input impedance : 100kohm // 20pF
  • maximum input voltage: 30Vp (AC + DC)
  • input coupling: AC+DC
  • AD resolution: 8 bit
  • record length: 800 samples
  • run modes: Run, Single
  • trigger level adjustable: in 254 steps
  • timebase range: in 15 steps 5µs to 200ms/division
  • input sensitivity range : in 6 steps, 100mV/division to 5V/division
  • input sensitivity: 3mV display resolution
  • time and Voltage markers readout
  • frequency readout (through markers)
• logic analyzer:
  • Number of channels: 10
  • record length: 10x800 samples
  • Maximum sample rate: 1MS/s
  • max. input voltage: 5VDC

Extra

• Raspberry Pi is a trademark of the Raspberry Pi Foundation
