PUOLIJOHDEKOMPONENTTIEN ANALYSAATTORI

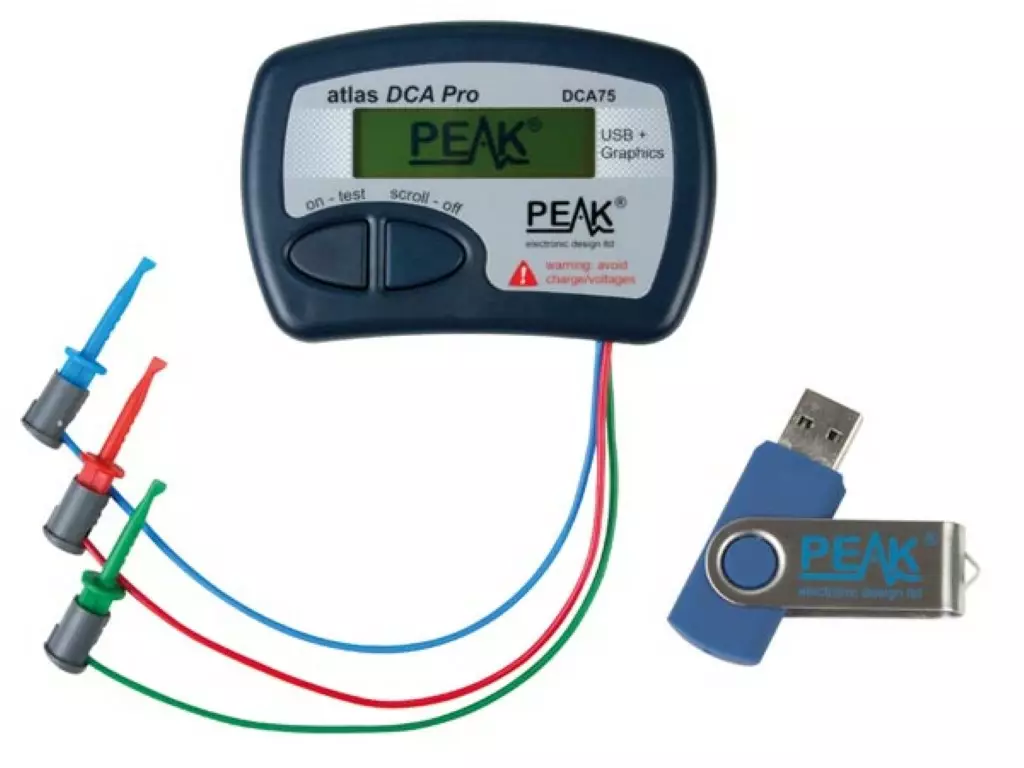

The DCA Pro has an advanced new design that features a graphics display, USB communications, PC software and an enhanced component identification library.

Ominaisuudet

• stand-alone or with a PC
• automatic component type identification
• automatic pinout identification
• special feature identification such as protection diodes and resistor shunts
• bipolar transistors: gain and leakage current measurements, silicon and germanium detection
• gate threshold measurement for Enhancement Mode MOSFETs
• semiconductor forward voltage measurement for diodes, LEDs and
  transistor Base-Emitter junctions
• automatic and manual power-off

Tekniset tiedot

• peak test current into short circuit: -5.5 mA to 5.5 mA
• peak test voltage across open circuit: -5.1 V to 5.1 V
• transistor:
  • gain range (Hfe): 4 - 65 000
  • gain accuracy: ± 3% ± 5 Hfe
  • Vceo test voltage: 2.0 V - 3.0 V
  • Vbe accuracy: -2% -20 mV to +2% + 20 mV
  • VBE for Darlington (shunted): 0.95 V - 1.80 V (0.75 V - 1.80 V)
  • base-emitter shunt threshold: 50 kΩ - 70 kΩ
  • BJT collector test current: 2.45 mA - 2.55 mA
  • BJT acceptable leakage: 0.7 mA
  • MOSFET:
    • gate threshold range: 0.1 V - 5.0 V
    • threshold accuracy: -2% -20 mV to +2% +20 mV
    • drain test current: 2.45 mA - 255 mA
    • gate resistance: 8 kΩ
  • depletion drain test current: 4.5 mA
  • JFET drain-source test current: 0.5 mA - 5.5 mA
• SCR/Triac:
  • gate test current: 4.5 mA
  • load test current: 5.0 mA
• diode:
  • test current: 5.0 mA
  • voltage accuracy: -2% -20 mV to +2% +20 mV
  • Vf for LED identification: 1.50 V - 4.00 V
  • short circuit threshold: 10 Ω
• battery:
  • type: MN21 / L1028 / GP23A 12 V alkaline
  • voltage range: 7.50 V - 12 V
  • warning threshold: 8.25 V
• dimensions: 103 x 70 x 20 mm
