KAAPELITUTKA ÄÄNIGENERAATTORILLA

 Ominaisuudet

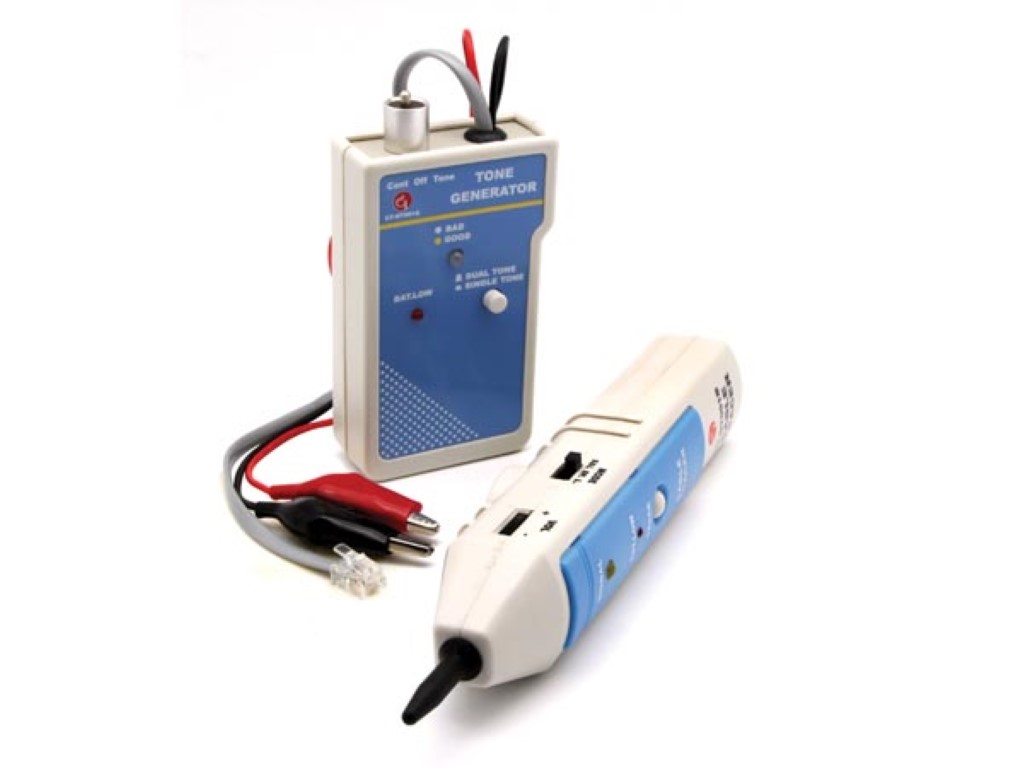

• network tester: consists of a tone generator and a probe
• method: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
• signal viewing in 3 modes: lamp (L), speaker (SP) or both (S&L)
• tone generator output (square waveform): single (900Hz) or dual (900 - 1000Hz)
• comes with: soft carrying bag

Tekniset tiedot:

• tone generator:
    •• working voltage: DC 9V ±15% (battery not incl.)
    •• working current: 10mA (intermittent tone) / 20mA (continuous tone)
    •• output wave form: square wave signals ±10Vpp
        ••• single audio frequency: ±900Hz
        ••• dual audio frequency: ±900Hz - 1000Hz
    •• dimensions: 115 x 62 x 27mm
    •• weight: ±130g
• probe:
    •• working voltage: DC 9V ±15% (battery not incl.)
    •• working current: 25mA (L) / 80mA (max. SP volume) / 100mA (max S&L volume)
    •• max. reception sensitivity: > 30mV
    •• maximum output volume: ±120dB
    •• dimensions: 205 x 40 x 38mm
    •• weight: ±80g
