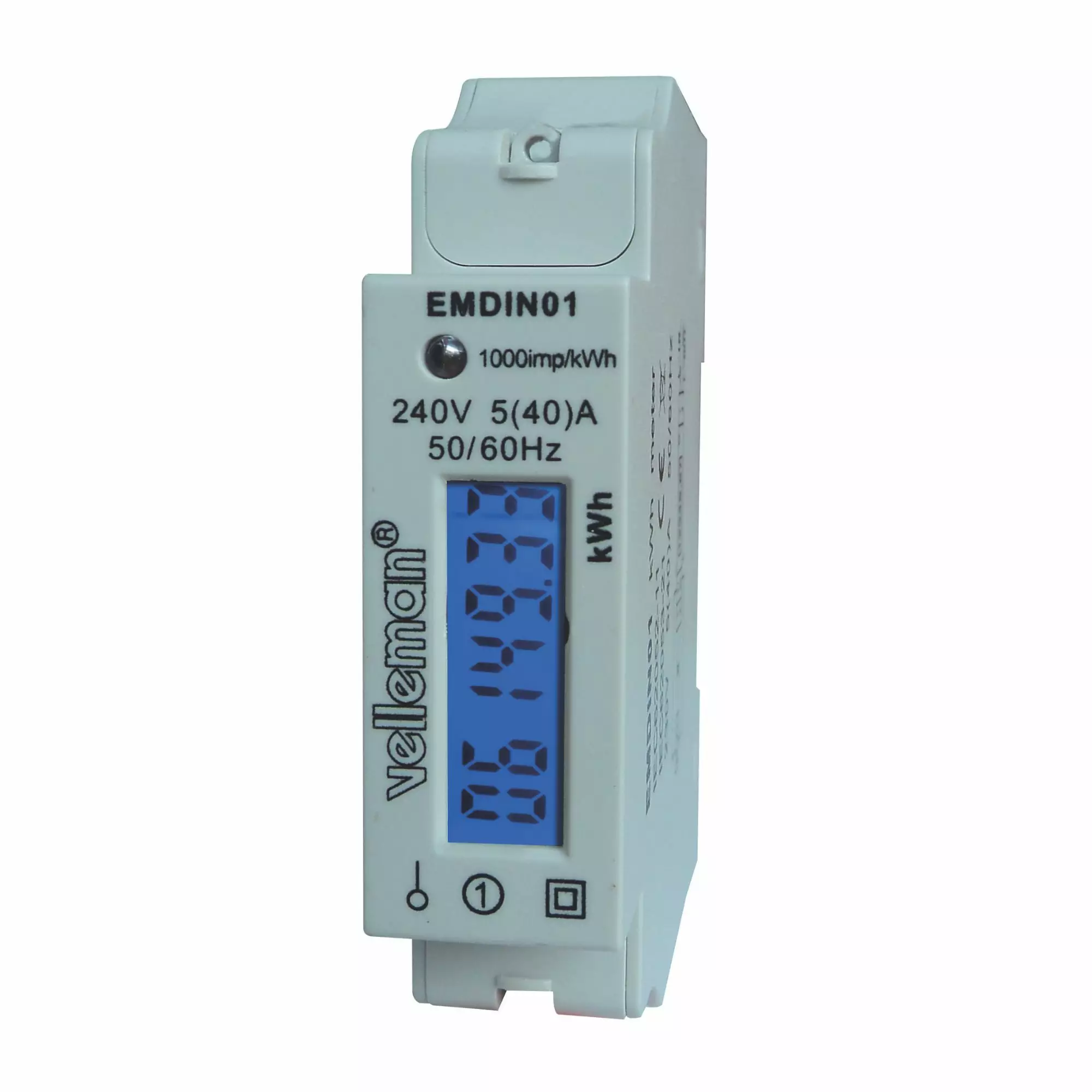

DIGITAALINEN KWH MITTARI DIN KISKOON - YKSIVAIHEINEN

Yksivaiheinen elektroninen kWh mittari pulssilaskurilla DIN kiskoon. Erittäin tarkka, luetettava, kevyt ja kompakti.

Ominaisuudet

• LCD näyttö sinisellä taustavalolla
• pulssianto
• LED indikaattori

Tekniset tiedot

• voltage: 230 V
• current: 5 (40) A
• accuracy class: 1.0
• frequency: 50 / 60 Hz
• display mode: LCD 5+2 digits = 99999.99 kWh
• power consumption: <= 0.4 W (8 VA)
• temperature range: -20 to 65 °C
• LED indicator: 1 blink per pulse
• with PNP transistor
• pulsed output: 1000 imp/kWh
  • voltage: 12 to 27 V
  • current: 27 mA
  • impulse width: 90 ms
• notes:
  • A qualified technician should install and service this device.
  • The measurements provided by this device are for information purposes only.
• not resettable
• dimensions (LxWxH): 80 x 18 x 60mm
