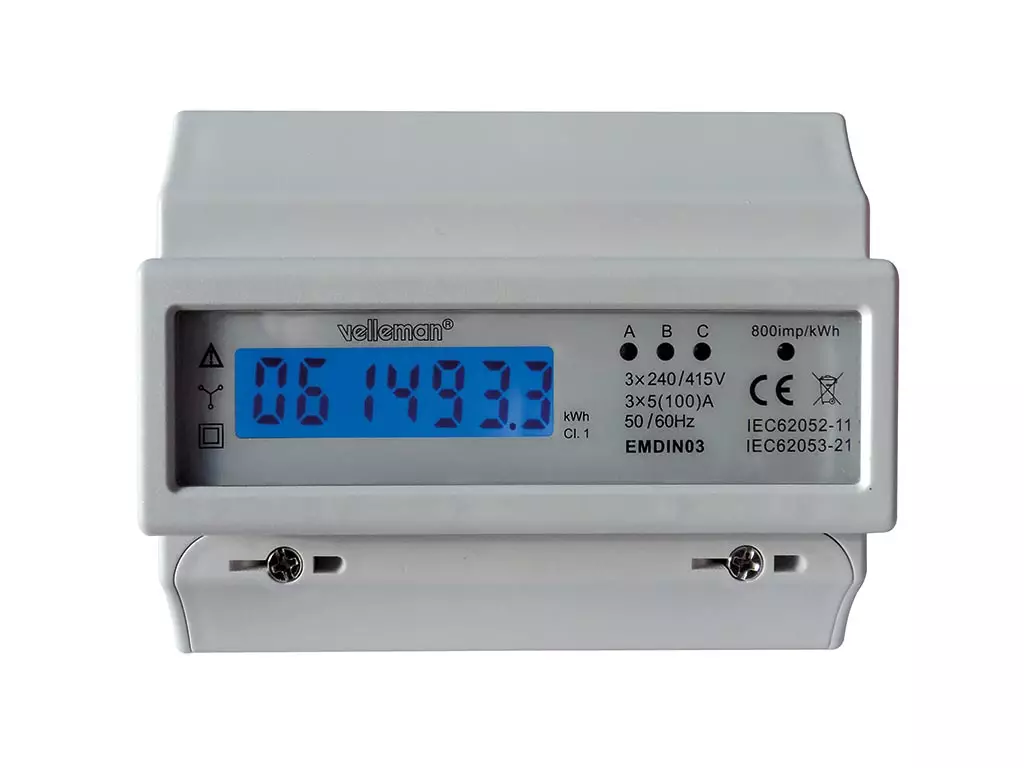

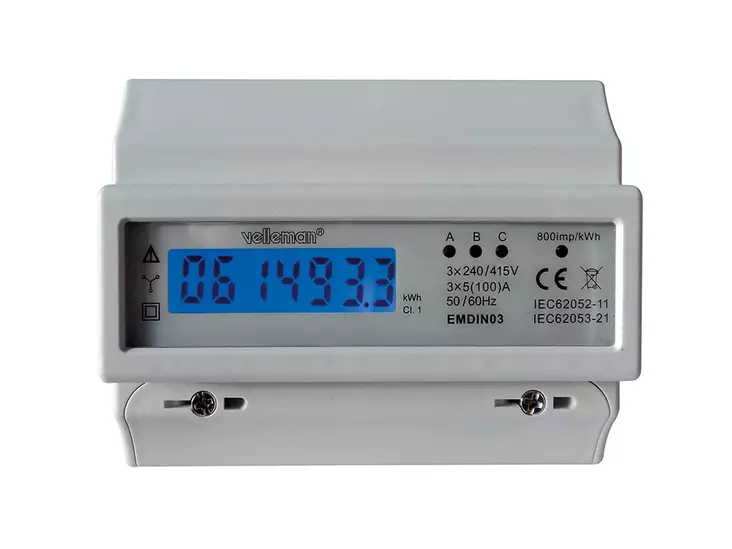

DIGITAALINEN KWH MITTARI DIN KISKOON - KOLMEVAIHEINEN

3 PHASE - 7 MODULE DIN-RAIL MOUNT kWh METER - FOR PROFESSIONAL USE

Three-phase four-wire electronic DIN rail kWh meter with pulse counting output.
Very accurate, reliable, light, and compact device.

Ominaisuudet

• LCD display (with blue backlight)
• pulsed output
• LED indicator

Tekniset tiedot

• voltage: 3 x 230 / 380 V
• current: 10 (100) A
• accuracy class: 1.0
• frequency: 50 / 60 Hz
• display mode: LCD 6+1 digits = 999999.9 kWh
• power consumption: <=2 W (10 VA)
• temperature range: -20 to 55 °C
• LED indicator: 1 blink per pulse
• pulsed output: 800 imp/kWh
  • voltage: 12 to 27 V
  • current: 27 mA
  • impulse width: 90 ms
• dimensions: 122.5 x 115 x 65 mm
• weight: 600 g
• notes:
  • A qualified technician should install and service this device.
  • The measurements provided by this device are for information purposes only.
• Not resettable
• with PNP transistor
