2-KANAVAINEN RF-KAUKOSÄÄDIN TUYA IOT -TOIMINNOLLA

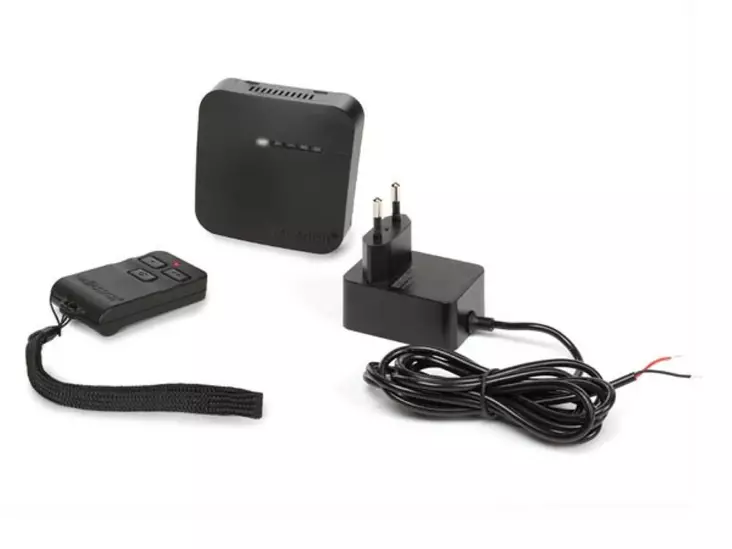

VM130V2SET sisältää kompaktin yleisvastaanottimen (VM130V2-R) ja lähettimen (VM130V2-T), joiden avulla voit ohjata laitteita jopa 30 metrin etäisyydeltä!!
Lisäksi vastaanotin toimii TUYA IoT -pilven kanssa, joten voit ohjata tätä kaikkialta maailmassa Tuya-sovelluksella ja internetyhteydellä.
Ei sovellu autotallien- tai muden sähköisten ovien ohjaamiseen.


Ominaisuudet

receiver:

two relay contact channels

connects to multiple transmitters

toggle or pulse function (selectable per output) (with Tuya app)

pulse function with turn-off timer (with Tuya app)

LED indicators: output (each channel) - power - Tuya status/pairing mode

optional transmitter: [product name=VM130V2-T]VM130V2-T[/product]

transmitter:

two channels

generates unique code

code can easily be changed for safety purposes

LED transmit indicator

RED compliant (ETS 300-220) (approved for EU countries)

high brightness white LED flashlight function

compatible with: [product name=VM130V2-R]VM130V2-R[/product]

Please note that VM130V2SET is not compatible with its predecessor VM130N

Tekniset tiedot

receiver:

power supply: 12 VDC

max. power consumption: 300 mA

2 relay contacts NO / NC: 5 A @ 48 VDC (resistive load)

wireless frequency: 433 MHz (RF) - 2.4 GHz (WLAN)

max. RF power transmission: < 20 dBm

selectable timers per output with Tuya app

open field range up to: 30 m

internal antenna (external antenna optional)

dimensions: 78 x 78 x 29 mm (3" x 3" x 1.14")

transmitter:

power supply: 12 V battery (included)

wireless frequency: 433 MHz (RF)

max. RF power transmission: < 10 dBm

dimensions: 63 x 35 x 13 mm (2.5" x 1.4" x 0.5")

power supply

max. supply voltage: 100-240 V~ 50/60 Hz 0.4 A max.

max. power: 12 W

no-load power consumption : < 0.1 W

output voltage: 12 VDC

max. output current: 1 A

cable length: 1.50 m

connector: bare wires 2.5 cm

dimensions: 55 x 39.5 x 23.5 mm

weight: 86 g
