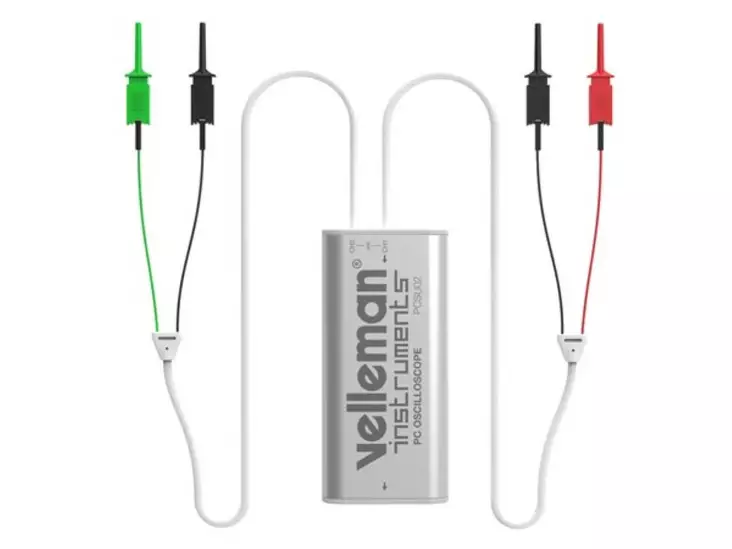

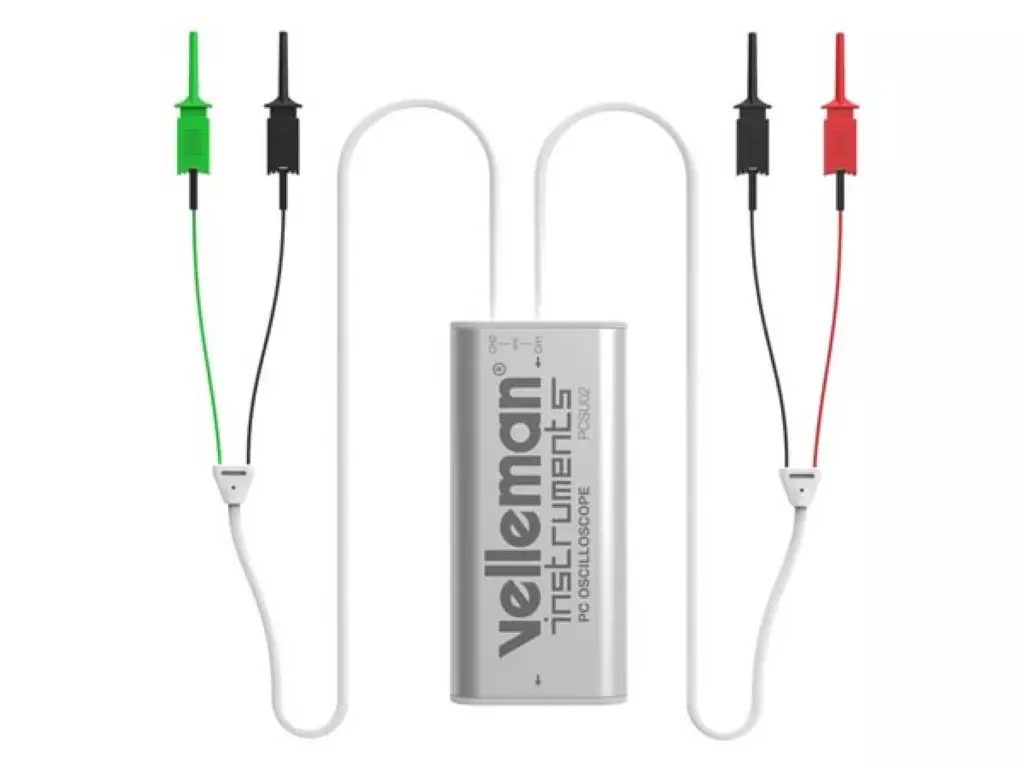

2 KANAVAINEN MINI PC OSKILLOSKOOPPI

Ominaisuudet

• mittajohdot
• ladattava ohjelmisto
• USB kaapeli mukana
• design kotelo

Tekniset tiedot

• oskilloskooppi:
  • taajuus: DC to 500 kHz ±3 dB
  • tuloimpedanssi: 100 kO /20 pF
  • maks. tulojännite: 30 V(AC + DC)
  • time base: 5 µs to 500 ms per division
  • input range: 100 mV to 5 V/division
  • tuloherkkyys: 3 mV display resolution
  • readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
  • record length: 1k samples
  • sampling frequency: 50 Hz to 2.5 MHz
  • sample history function
  • automaattinen asetuksien valinta
  • pre-trigger function: on 50 µs/div .. 500 ms/div ranges
  • persistence options: colour graded, variable and infinite
• spectrum analyser:
  • frequency range: 0 .. 125 Hz to 125 kHz
  • operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 512 lines
• transienttitallennin:
  • time scale: 20 ms/div to 2000 s/div
  • max. recording time: 9.4 h/screen
  • automatic storage of data
  • record and display of screens
  • max. number of samples: 100/s
  • min. number of samples: 1 sample/20 s
• yleistä:
  • markers for: amplitude/voltage and frequency/time
  • input coupling: DC and AC
  • 8 bit resolution
  • storage of display and data
  • dimensions: 85 x 40 x 14 mm
• minimum system requirements:
  • Windows® XP, Vista, 7, 8 (and 10 by using a workaround option)
  • mouse (or mouse pad)
  • free USB port 1.1 or 2.0
